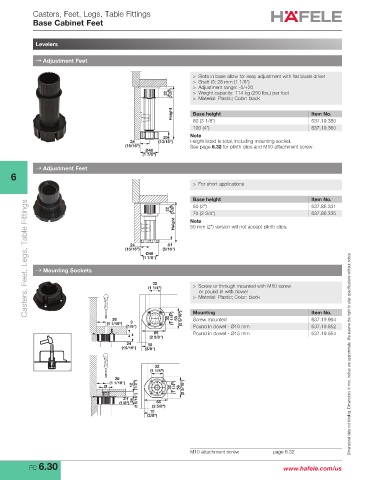

Casters, Feet, Legs, Table Fittings
Base Cabinet Feet

Levelers

→ Adjustment Feet

> Slots in base allow for easy adjustment with flat blade driver
> Shaft Ø: 28 mm (1 1/8")
> Adjustment range: -5/+20
(7/8") > Weight capacity: 114 kg (250 lbs.) per foot
22 > Material: Plastic; Color: black

Height Base height Item No.
80 (3 1/8")
637.19.380
100 (4") 637.19.360
20 Note
24 (13/16") Height listed is total, including mounting socket.
(15/16") See page 6.32 for plinth clips and M10 attachment screw.
Ø48
(1 7/8")
→ Adjustment Feet
6
> For short applications

Base height Item No.
Casters, Feet, Legs, Table Fittings
(7/8") 50 (2") 637.86.331
22 70 (2 3/4") 637.86.335
Height Note
50 mm (2") version will not accept plinth clips.

24 8
(15/16") (5/16")
Ø48
(1 7/8")
→ Mounting Sockets

32 > Screw or through mounted with M10 screw
(1 1/4")
or pound in with dowel
> Material: Plastic; Color: black

637.19.964
Screw mounted
26 32 (1 1/4") 58 (2 5/16") Mounting Item No.
(1 1/16") 3
(1/8") Pound in dowel - Ø10 mm 637.19.952
65 Pound in dowel - Ø15 mm 637.19.954
(2 5/8")
24 10
(15/16") (3/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
32
(1 1/4")
26
(1 1/16")
Ø 12 (1/2") 32 (1 1/4") 58 (2 5/16")
3
65
(1/8") 24 (15/16") (2 5/8")
10
(3/8")

M10 attachment screw page 6.32
FC 6.30 www.hafele.com/us
