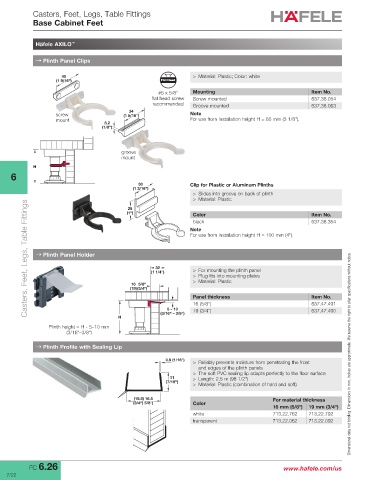

Casters, Feet, Legs, Table Fittings
Base Cabinet Feet

Häfele AXILO ™

→ Plinth Panel Clips

40 > Material: Plastic; Color: white
(1 9/16") Flat Head
#5 x 5/8" Mounting Item No.
flat head screw Screw mounted 637.38.054
recommended Groove mounted 637.38.063
34
screw (1 5/16") Note
mount 3.2 For use from installation height H = 80 mm (3 1/8").
(1/8")

groove
mount
H
6
30 Clip for Plastic or Aluminum Plinths
(1 3/16")
> Slides into groove on back of plinth
> Material: Plastic
Casters, Feet, Legs, Table Fittings
26
(1") Color Item No.
black 637.38.354
Note
For use from installation height H = 100 mm (4").

→ Plinth Panel Holder

32
(1 1/4") > For mounting the plinth panel
> Plug fits into mounting plates
> Material: Plastic
16 5/8"
(19) (3/4")
Panel thickness Item No.
16 (5/8") 637.47.491
5 – 10 19 (3/4") 637.47.490
(3/16" – 3/8")
H
Plinth height = H - 5–10 mm
(3/16"–3/8")

→ Plinth Profile with Sealing Lip

0.9 (1/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Reliably prevents moisture from penetrating the front
and edges of the plinth panels
> The soft PVC sealing lip adapts perfectly to the floor surface
11 > Length: 2.5 m (98 1/2")
(7/16")
> Material: Plastic (combination of hard and soft)
(19.5) 16.5 For material thickness
(3/4") 5/8") Color
16 mm (5/8") 19 mm (3/4")
white 713.22.762 713.22.792
transparent 713.22.062 713.22.092

FC 6.26 www.hafele.com/us
