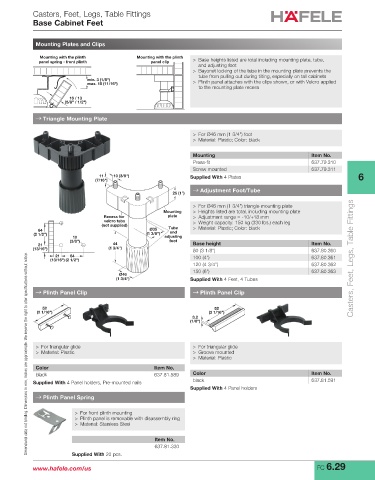

Casters, Feet, Legs, Table Fittings
Base Cabinet Feet

Mounting Plates and Clips

Mounting with the plinth Mounting with the plinth > Base heights listed are total including mounting plate, tube,
panel spring - front plinth panel clip
and adjusting foot
> Bayonet locking of the tube in the mounting plate prevents the
tube from pulling out during tilting, especially on tall cabinets
min. 3 (1/8") > Plinth panel attaches with the clips shown, or with Velcro applied
max. 18 (11/16")
to the mounting plate recess
16 / 13
(5/8" / 1/2")

→ Triangle Mounting Plate

> For Ø46 mm (1 3/4") foot
> Material: Plastic; Color: black

Mounting Item No.
Press-fit 637.79.310
Screw mounted 637.79.311
11 10 (3/8") Supplied With 4 Plates 6
(7/16")
→ Adjustment Foot/Tube
25 (1")
> For Ø46 mm (1 3/4") triangle mounting plate
Mounting > Heights listed are total, including mounting plate
Recess for plate > Adjustment range = -10/+18 mm
velcro tabs > Weight capacity: 150 kg (330 lbs.) each leg
(not supplied)
64 Ø35 Tube > Material: Plastic; Color: black
(2 1/2") (1 3/8") and

10 adjusting
(3/8") foot
21 44 Base height Item No.
(13/16") (1 3/4") 80 (3 1/8") 637.80.360
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
21 64 100 (4") 637.80.361
(13/16") (2 1/2") Casters, Feet, Legs, Table Fittings
120 (4 3/4") 637.80.362
150 (6") 637.80.363
Ø46
(1 3/4") Supplied With 4 Feet, 4 Tubes
→ Plinth Panel Clip → Plinth Panel Clip
52 52
(2 1/16") (2 1/16")
3.2
(1/8")

> For triangular glide > For triangular glide
> Material: Plastic > Groove mounted
> Material: Plastic
Color Item No.
black 637.81.589 Color Item No.
Supplied With 4 Panel holders, Pre-mounted nails black 637.81.591
Supplied With 4 Panel holders
→ Plinth Panel Spring

> For front plinth mounting
> Plinth panel is removable with disassembly ring
> Material: Stainless Steel

Item No.
637.81.330
Supplied With 20 pcs.
