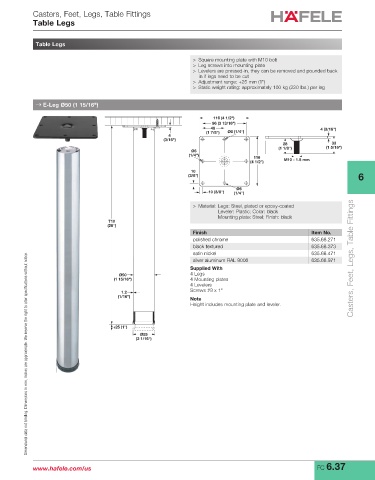

Casters, Feet, Legs, Table Fittings
Table Legs

Table Legs

> Square mounting plate with M10 bolt
> Leg screws into mounting plate
> Levelers are pressed-in, they can be removed and pounded back
in if legs need to be cut
> Adjustment range: +25 mm (1")
> Static weight rating: approximately 100 kg (220 lbs.) per leg

→ E-Leg Ø50 (1 15/16")

116 (4 1/2")
96 (3 13/16")
48 4 (3/16")
(1 7/8") Ø6 (1/4")
4
(3/16")
28 33
(1 1/8") (1 5/16")
Ø6
(1/4")
116
(4 1/2") M10 - 1.5 mm
10
(3/8") 6
Ø6
10 (3/8") (1/4")
> Material: Legs: Steel, plated or epoxy-coated
Leveler: Plastic; Color: black
Mounting plate: Steel; Finish: black
710
(28")
Finish Item No.
polished chrome 635.68.271
black textured 635.68.373
satin nickel 635.68.471
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
silver aluminum RAL 9006 635.68.971 Casters, Feet, Legs, Table Fittings
Supplied With
Ø50 4 Legs
(1 15/16") 4 Mounting plates
4 Levelers
Screws #9 x 1"
1.2
(1/16") Note
Height includes mounting plate and leveler.

+25 (1")
Ø53
(2 1/16")

www.hafele.com/us FC 6.37
