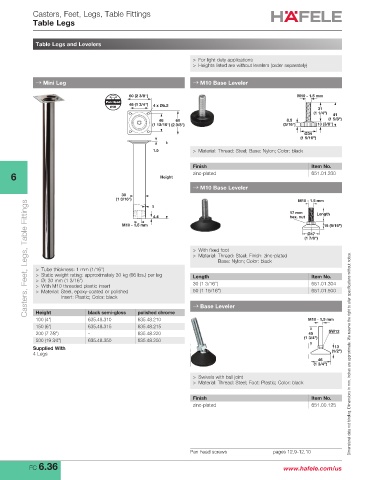

Casters, Feet, Legs, Table Fittings
Table Legs

Table Legs and Levelers

> For light duty applications
> Heights listed are without levelers (order separately)

→ Mini Leg → M10 Base Leveler

60 (2 3/8") M10 - 1.5 mm
Pan Head
#10 46 (1 3/4") 4 x Ø5.2 31
(1 1/4") 41
46 60 8.5 (1 5/8")
(1 13/16") (2 3/8") (5/16") 10 (3/8")
Ø34
(1 5/16")
1.5 > Material: Thread: Steel; Base: Nylon; Color: black

Finish Item No.
6 Height zinc-plated 651.01.330

→ M10 Base Leveler
30
(1 3/16") M10 - 1.5 mm
Casters, Feet, Legs, Table Fittings
1
17 mm Length
4.4 hex. nut
M10 - 1.5 mm 15 (9/16")
Ø47
(1 7/8")
> With fixed foot
> Material: Thread: Steel; Finish: zinc-plated
Base: Nylon; Color: black
> Tube thickness: 1 mm (1/16")
> Static weight rating: approximately 30 kg (66 lbs.) per leg Length Item No.
> Ø: 30 mm (1 3/16")
> With M10 threaded plastic insert 30 (1 3/16") 651.01.304
> Material: Steel, epoxy-coated or polished 50 (1 15/16") 651.01.500
Insert: Plastic; Color: black
→ Base Leveler
Height black semi-gloss polished chrome
100 (4") 635.48.310 635.48.210 M10 - 1.5 mm
150 (6") 635.48.315 635.48.215
200 (7 7⁄8") - 635.48.220 45 SW12
500 (19 3⁄4") 635.48.350 635.48.250 (1 3/4")
Supplied With 13
4 Legs (1/2") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
46
(1 3/4")
> Swivels with ball joint
> Material: Thread: Steel; Foot: Plastic; Color: black

Finish Item No.
zinc-plated 651.00.125

Pan head screws pages 12.9-12.10
