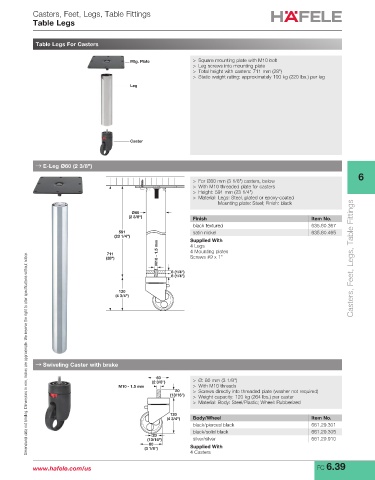

Casters, Feet, Legs, Table Fittings
Table Legs

Table Legs For Casters

Mtg. Plate > Square mounting plate with M10 bolt
> Leg screws into mounting plate
> Total height with casters: 711 mm (28")
> Static weight rating: approximately 100 kg (220 lbs.) per leg
Leg

Caster

→ E-Leg Ø60 (2 3/8")
6
> For Ø80 mm (3 1/8") casters, below
> With M10 threaded plate for casters
> Height: 591 mm (23 1/4")
> Material: Legs: Steel, plated or epoxy-coated
Mounting plate: Steel; Finish: black
Ø60
(2 3/8") Finish Item No.
black textured 635.60.367
591 satin nickel 635.60.465
(23 1/4") Supplied With

4 Mounting plates
711 M10 - 1.5 mm 4 Legs
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(28") Screws #9 x 1" Casters, Feet, Legs, Table Fittings
6 (1/4")
6 (1/4")

120
(4 3/4")

→ Swiveling Caster with brake
60
(2 3/8") > Ø: 80 mm (3 1/8")
M10 - 1.5 mm > With M10 threads
20 > Screws directly into threaded plate (washer not required)
(13/16") > Weight capacity: 120 kg (264 lbs.) per caster
> Material: Body: Steel/Plastic; Wheel: Rubberized

120
(4 3/4") Body/Wheel Item No.
black/pierced black 661.29.301
black/solid black 661.29.305
20
(13/16") silver/silver 661.29.910
80 Supplied With
(3 1/8")
4 Casters

www.hafele.com/us FC 6.39
