Casters, Feet, Legs, Table Fittings

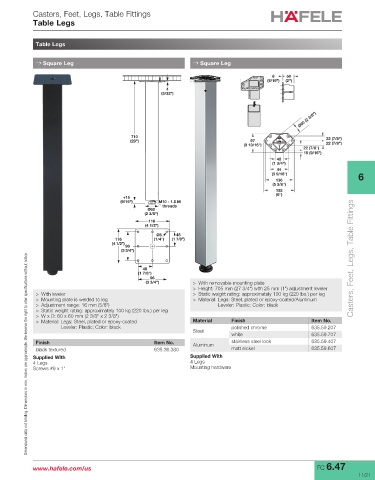

Table Legs

Table Legs

→ Square Leg → Square Leg

8 50
(5/16") (2")
4
(5/32")

Ø60 (2 3/8")

710 22 (7/8")
(28") 97
(3 13/16") 22 (7/8")
22 (7/8")
15 (9/16")
45
(1 3/4")
91
(3 9/16") 6
136
(5 3/8")
152
(6")
+15
(9/16") M10 - 1.5 M
threads
Ø60
(2 3/8")
116
(4 1/2")
Ø6 48
116 (1/4") (1 7/8")
(4 1/2")
96
(3 3/4") Casters, Feet, Legs, Table Fittings
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
48
(1 7/8")
96
(3 3/4") > With removable mounting plate
> Height: 705 mm (27 3/4") with 25 mm (1") adjustment leveler
> With leveler > Static weight rating: approximately 100 kg (220 lbs.) per leg
> Mounting plate is welded to leg > Material: Legs: Steel, plated or epoxy-coated/Aluminum
> Adjustment range: 16 mm (5/8") Leveler: Plastic; Color: black
> Static weight rating: approximately 100 kg (220 lbs.) per leg
> W x D: 60 x 60 mm (2 3/8" x 2 3/8")
> Material: Legs: Steel, plated or epoxy-coated Material Finish Item No.
Leveler: Plastic; Color: black polished chrome 635.59.207
Steel
white 635.59.707
Finish Item No. Aluminum stainless steel look 635.59.407
black textured 635.36.380 matt nickel 635.59.607
Supplied With Supplied With
4 Legs 4 Legs
Screws #9 x 1" Mounting hardware

www.hafele.com/us FC 6.47
11/21
