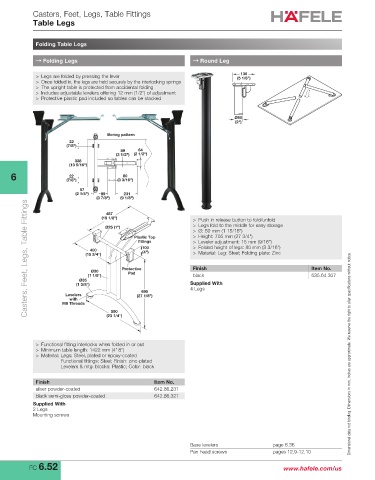

Casters, Feet, Legs, Table Fittings
Table Legs

Folding Table Legs

→ Folding Legs → Round Leg
130
> Legs are folded by pressing the lever (5 1/8")
> Once folded in, the legs are held securely by the interlocking springs
> The upright table is protected from accidental folding
> Includes adjustable levelers offering 12 mm (1/2") of adjustment
> Protective plastic pad included so tables can be stacked

Ø50
(2")
Boring pattern
22
(7/8")
89 64
(3 1/2") (2 1/2")
338
(13 5/16")
6 (7/8") (3 3/16")
22
80
57
(2 1/4") 99 231
(3 7/8") (9 1/8")
Casters, Feet, Legs, Table Fittings
487
(19 1/8") > Push in release button to fold/unfold
> Legs fold to the middle for easy storage
Ø25 (1")
> Ø: 50 mm (1 15/16")
Plastic Top > Height: 705 mm (27 3/4")
fittings > Leveler adjustment: 15 mm (9/16")
100 > Folded height of legs: 80 mm (3 3/16")
400 (4")
(15 3/4") > Material: Leg: Steel; Folding plate: Zinc
Protective Finish Item No.
Ø30 Pad
(1 1/8") black 635.64.307
Ø35
(1 3/8") Supplied With
690 4 Legs
Levelers (27 1/8")
with
M8 Threads
590
(23 1/4")

> Functional fitting interlocks when folded in or out
> Minimum table length: 1422 mm (4' 8")
> Material: Legs: Steel, plated or epoxy-coated Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Functional fittings: Steel; Finish: zinc-plated
Levelers & mtg. blocks: Plastic; Color: black

Finish Item No.
silver powder-coated 642.86.231
black semi-gloss powder-coated 642.86.321
Supplied With
2 Legs
Mounting screws

Base levelers page 6.36
Pan head screws pages 12.9-12.10
