Casters, Feet, Legs, Table Fittings

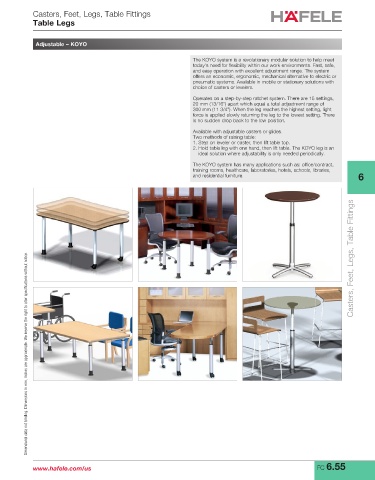

Table Legs

Adjustable – KOYO

The KOYO system is a revolutionary modular solution to help meet
today’s need for flexibility within our work environments. Fast, safe,
and easy operation with excellent adjustment range. The system
offers an economic, ergonomic, mechanical alternative to electric or
pneumatic systems. Available in mobile or stationary solutions with
choice of casters or levelers.
Operates on a step-by-step ratchet system. There are 15 settings,
20 mm (13/16") apart which equal a total adjustment range of
300 mm (11 3/4"). When the leg reaches the highest setting, light
force is applied slowly returning the leg to the lowest setting. There
is no sudden drop back to the low position.
Available with adjustable casters or glides.
Two methods of raising table:
1. Step on leveler or caster, then lift table top.
2. Hold table leg with one hand, then lift table. The KOYO leg is an
ideal solution where adjustability is only needed periodically.
The KOYO system has many applications such as: office/contract,
training rooms, healthcare, laboratories, hotels, schools, libraries,
and residential furniture. Casters, Feet, Legs, Table Fittings 6

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

www.hafele.com/us FC 6.55
