Casters, Feet, Legs, Table Fittings
Table Legs

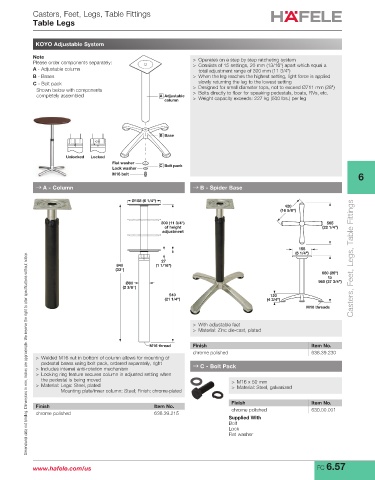

KOYO Adjustable System

Note > Operates on a step by step ratcheting system
Please order components separately: > Consists of 15 settings, 20 mm (13/16") apart which equal a
A - Adjustable column total adjustment range of 300 mm (11 3/4")
B - Bases > When the leg reaches the highest setting, light force is applied
C - Bolt pack slowly returning the leg to the lowest setting
Shown below with components > Designed for small diameter tops, not to exceed Ø711 mm (28")
> Bolts directly to floor for speaking pedestals, boats, RVs, etc.
completely assembled A Adjustable > Weight capacity exceeds: 227 kg (500 lbs.) per leg
column

B Base

Unlocked Locked
Flat washer C Bolt pack
Lock washer
6
M16 bolt
→ A - Column → B - Spider Base
Ø158 (6 1/4")
420
(16 5/8")
300 (11 3/4") 565
of height (22 1/4")
adjustment

158
(6 1/4")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
27 Casters, Feet, Legs, Table Fittings
840 (1 1/16")
(33")
660 (26")
to
Ø60 960 (37 3/4")
(2 3/8")
540 120
(21 1/4") (4 3/4")
M10 threads

> With adjustable feet
> Material: Zinc die-cast, plated

M16 thread Finish Item No.
chrome polished 638.39.230
> Welded M16 nut in bottom of column allows for mounting of
pedestal bases using bolt pack, ordered separately, right
> Includes internal anti-rotation mechanism → C - Bolt Pack
> Locking ring feature secures column in adjusted setting when
the pedestal is being moved > M16 x 50 mm
> Material: Legs: Steel, plated > Material: Steel, galvanized
Mounting plate/inner column: Steel; Finish: chrome-plated

Finish Item No.
Finish Item No. chrome polished 630.00.001
chrome polished 638.39.215
Supplied With
Bolt
Lock
Flat washer

www.hafele.com/us FC 6.57
