Casters, Feet, Legs, Table Fittings
Adjustable Table System – Side Mount Systems

Adjustable Columns

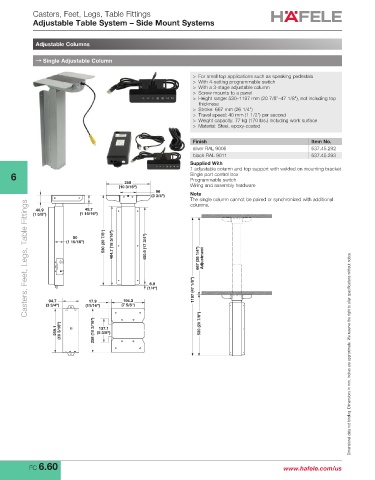

→ Single Adjustable Column

> For small top applications such as speaking pedestals
> With 4-setting programmable switch
> With a 3-stage adjustable column
> Screw mounts to a panel
> Height range: 530–1197 mm (20 7/8"–47 1/8"), not including top
thickness
> Stroke: 667 mm (26 1/4")
> Travel speed: 40 mm (1 1/2") per second
> Weight capacity: 77 kg (170 lbs.) including work surface
> Material: Steel, epoxy-coated

Finish Item No.
silver RAL 9006 637.45.292
black RAL 9011 637.45.293
Supplied With
1 adjustable column and top support with welded on mounting bracket
6 Single port control box
Programmable switch
258
(10 3/16") Wiring and assembly hardware
96 Note
(3 3/4")
The single column cannot be paired or synchronized with additional
Casters, Feet, Legs, Table Fittings
columns.
40.9 48.7
(1 5/8") (1 15/16")

50
(1 15/16") 530 (20 7/8") 464.7 (18 5/16") 450.9 (17 3/4") 667 (26 1/4") Adjustment

6.9
(1/4") 1197 (47 1/8")

94.7 17.9 194.3
(3 3/4") (11/16") (7 5/8")

259.1 (10 3/16") 258 (10 3/16") (5 3/8") 530 (20 7/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
137.1
