Casters, Feet, Legs, Table Fittings

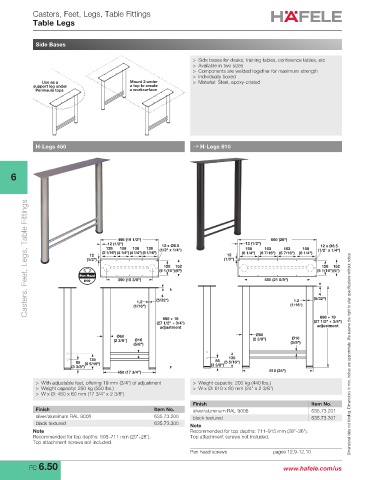

Table Legs

Side Bases

> Side bases for desks, training tables, conference tables, etc.
> Available in two sizes
> Components are welded together for maximum strength
> Individually boxed
Use as a Mount 2 under > Material: Steel, epoxy-coated
support leg under a top to create
Peninsula tops a worksurface

H-Legs 450 → H-Legs 610

6

Casters, Feet, Legs, Table Fittings

496 (19 1/2") 660 (26")
12 (1/2") 12 x Ø6.5 12 (1/2") 12 x Ø6.5
128 108 108 128 (1/2" x 1/4") 158 163 163 158 (1/2" x 1/4")
(5 1/16") (4 1/4") (4 1/4") (5 1/16") (6 1/4") (6 7/16") (6 7/16") (6 1/4")
12 12
(1/2") (1/2")
128 152 128 152
(5 1/16")(6") (5 1/16")(6")
Pan Head
#10 390 (15 3/8") 550 (21 5/8")

4
4 (5/32")
1.2 (5/32") 1.2
(1/16") (1/16")
698 + 19 698 + 19
(27 1/2" + 3/4") (27 1/2" + 3/4")
adjustment adjustment
Ø60 Ø60 Ø16
(2 3/8") Ø16 (2 3/8") (5/8")
(5/8")

135 135 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
85 (5 5/16") 85 (5 5/16")
(3 3/8") (3 3/8")
450 (17 3/4") 610 (24")
> With adjustable feet, offering 19 mm (3/4") of adjustment > Weight capacity: 200 kg (440 lbs.)
> Weight capacity: 250 kg (550 lbs.) > W x Ø: 610 x 60 mm (24" x 2 3/8")
> W x Ø: 450 x 60 mm (17 3/4" x 2 3/8")
Finish Item No.
Finish Item No. silver/aluminum RAL 9006 635.73.201
silver/aluminum RAL 9006 635.73.200 black textured 635.73.301
black textured 635.73.300 Note
Note Recommended for top depths: 711–915 mm (28"–36").
Recommended for top depths: 508–711 mm (20"–28"). Top attachment screws not included.
Top attachment screws not included.
Pan head screws pages 12.9-12.10
