Casters, Feet, Legs, Table Fittings
Table Legs

Table Legs

> Leg screws into square mounting plate with M10 bolt
> Leg tapers from Ø60–Ø25 mm (2 3/8"–1")
> Adjustment range: +10 mm (3/8")
> Static weight rating: approximately 100 kg (220 lbs.) per leg
> With adjustable foot: +10 mm (3/8")
> Material: Legs: Steel, plated or epoxy-coated
Leveler: Plastic; Color: black
Mounting Plate: Steel; Color: black

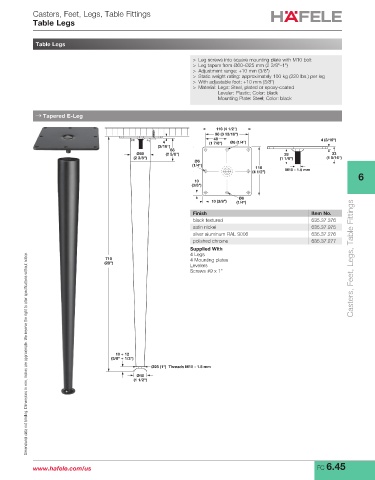

→ Tapered E-Leg

116 (4 1/2")
96 (3 13/16")
48 4 (3/16")
4 (1 7/8") Ø6 (1/4")
(3/16")
68
Ø60 (2 5/8") 28 33
(2 3/8") (1 1/8") (1 5/16")
Ø6
(1/4") 116
(4 1/2") M10 - 1.5 mm
6
10
(3/8")
Ø6
10 (3/8") (1/4")
Finish Item No.
black textured 635.37.376
satin nickel 635.37.975
silver aluminum RAL 9006 635.37.276
polished chrome 635.37.277
Supplied With
4 Legs
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
710 4 Mounting plates Casters, Feet, Legs, Table Fittings
(28")
Levelers
Screws #9 x 1"

10 + 12
(3/8" + 1/2")
Ø25 (1") Threads M10 - 1.5 mm
Ø40
(1 1/2")

www.hafele.com/us FC 6.45
