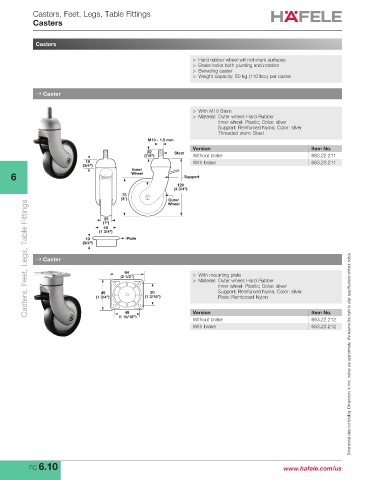

P. 436
Casters, Feet, Legs, Table Fittings
Casters
Casters
> Hard rubber wheel will not mark surfaces
> Brake locks both pivoting and rotation
> Swiveling caster
> Weight capacity: 50 kg (110 lbs.) per caster
→ Caster
> With M10 Stem
> Material: Outer wheel: Hard Rubber
Inner wheel: Plastic; Color: silver
Support: Reinforced Nylon; Color: silver
Threaded stem: Steel
M10 - 1.5 mm
Version Item No.
22 Stem
(7/8") Without brake 663.22.211
19 With brake 663.23.211
(3/4")
Inner
6 Wheel Support
120
(4 3/4")
75
(3") Outer
Casters, Feet, Legs, Table Fittings
Wheel
25
(1")
45
(1 3/4")
19 Plate
(3/4")
→ Caster
64 > With mounting plate
(2 1/2")
> Material: Outer wheel: Hard Rubber
Inner wheel: Plastic; Color: silver
45 30 Support: Reinforced Nylon; Color: silver
(1 3/4") (1 3/16") Plate: Reinforced Nylon
49 Version Item No.
(1 15/16")
Without brake 663.22.212
With brake 663.23.212 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
