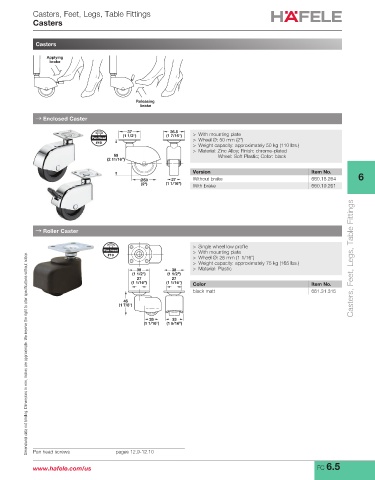

Casters, Feet, Legs, Table Fittings
Casters

Casters

Applying
brake

Releasing
brake

→ Enclosed Caster
37 36.5
(1 1/2") (1 7/16") > With mounting plate
Pan Head > Wheel Ø: 50 mm (2")
#10
> Weight capacity: approximately 50 kg (110 lbs.)
> Material: Zinc Alloy; Finish: chrome-plated
69 Wheel: Soft Plastic; Color: black
(2 11/16")
Version Item No.
Ø50 27 Without brake 660.18.264 6
(2") (1 1/16") With brake 660.19.261

→ Roller Caster

> Single wheel low profile
Pan Head > With mounting plate
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
#10
> Wheel Ø: 26 mm (1 1/16") Casters, Feet, Legs, Table Fittings
> Weight capacity: approximately 75 kg (165 lbs.)
38 38 > Material: Plastic
(1 1/2") (1 1/2")
27 27
(1 1/16") (1 1/16") Color Item No.
black matt 661.31.315
46
(1 7/8")

26 33
(1 1/16") (1 5/16")

Pan head screws pages 12.9-12.10
