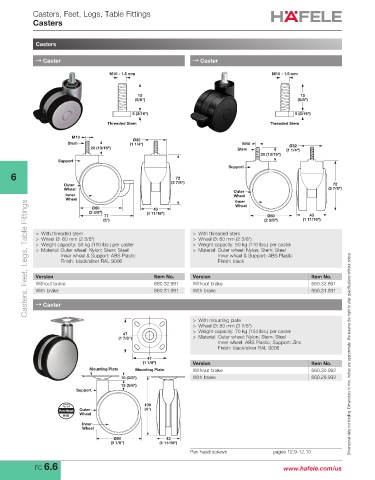

Casters, Feet, Legs, Table Fittings
Casters

Casters

→ Caster → Caster
M10 - 1.5 mm M10 - 1.5 mm

15 15
(5/8") (5/8")

5 (3/16") 5 (3/16")
Threaded Stem Threaded Stem

M10 Ø32
Stem (1 1/4") M10 Ø32
20 (13/16") Stem (1 1/4")
20 (13/16")
Support
Support
6 72
Outer (2 7/8") 72
Wheel Outer (2 7/8")
Inner Wheel
Wheel
Inner
Casters, Feet, Legs, Table Fittings
Ø60 43 Wheel
(2 3/8") (1 11/16")
77 Ø60 43
(3") (2 3/8") (1 11/16")
> With threaded stem > With threaded stem
> Wheel Ø: 60 mm (2 3/8") > Wheel Ø: 60 mm (2 3/8")
> Weight capacity: 50 kg (110 lbs.) per caster > Weight capacity: 50 kg (110 lbs.) per caster
> Material: Outer wheel: Nylon; Stem: Steel > Material: Outer wheel: Nylon; Stem: Steel
Inner wheel & Support: ABS Plastic Inner wheel & Support: ABS Plastic
Finish: black/silver RAL 9006 Finish: black

Version Item No. Version Item No.
Without brake 660.32.991 Without brake 660.32.891
With brake 660.31.991 With brake 660.31.891
→ Caster

> With mounting plate
> Wheel Ø: 80 mm (3 1/8")
> Weight capacity: 70 kg (154 lbs.) per caster
47
(1 7/8") > Material: Outer wheel: Nylon; Stem: Steel
Inner wheel: ABS Plastic; Support: Zinc
Finish: black/silver RAL 9006
47 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1 7/8") Version Item No.
Mounting Plate Mounting Plate Without brake 660.30.992
10 (3/8") With brake 660.29.992
15 (5/8")
Support

100
Pan Head Outer (4")
#10 Wheel
Inner
Wheel
Ø80 43
(3 1/8") (1 11/16")
Pan head screws pages 12.9-12.10
