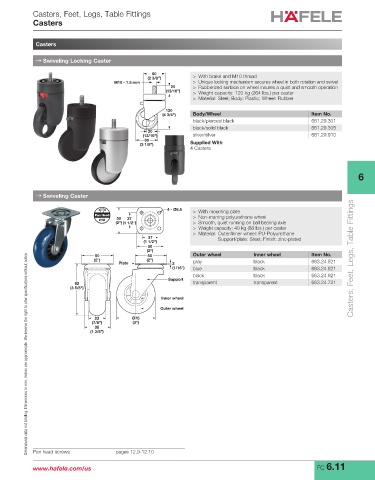

Casters, Feet, Legs, Table Fittings
Casters

Casters

→ Swiveling Locking Caster
60 > With brake and M10 thread
(2 3/8")
M10 - 1.5 mm > Unique locking mechanism secures wheel in both rotation and swivel
20 > Rubberized surface on wheel insures a quiet and smooth operation
(13/16") > Weight capacity: 120 kg (264 lbs.) per caster
> Material: Steel; Body: Plastic; Wheel: Rubber

120
(4 3/4") Body/Wheel Item No.
black/pierced black 661.29.301
black/solid black 661.29.305
20
(13/16") silver/silver 661.29.910
80
(3 1/8") Supplied With
4 Casters

6

→ Swiveling Caster

4 - Ø6.5 > With mounting plate
Pan Head > Non-marring polyurethane wheel
#10 50 37
(2") (1 1/2") > Smooth, quiet running on ball bearing axle
> Weight capacity: 40 kg (88 lbs.) per caster
> Material: Outer/Inner wheel: PU-Polyurethane
37 Support/plate: Steel; Finish: zinc-plated
(1 1/2")
50
(2")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
50 50 Outer wheel Inner wheel Item No.
(2") (2") Casters, Feet, Legs, Table Fittings
Plate 2 gray black 663.24.521
(1/16") blue black 663.24.821
black black 663.24.921
Support
92 transparent transparent 663.24.721
(3 5/8")
Inner wheel
Outer wheel
23 Ø75
(7/8") (3")
35
(1 3/8")

Pan head screws pages 12.9-12.10

www.hafele.com/us FC 6.11
