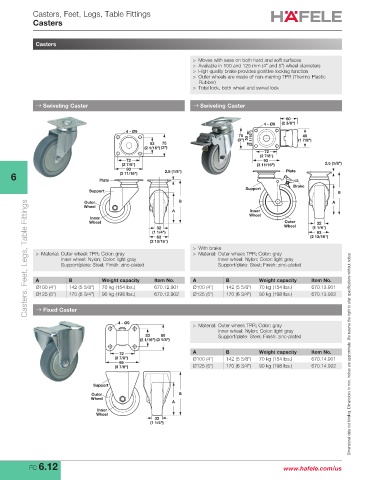

Page 438 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Casters, Feet, Legs, Table Fittings
Casters

Casters

> Moves with ease on both hard and soft surfaces
> Available in 100 and 125 mm (4" and 5") wheel diameters
> High quality brake provides positive locking function
> Outer wheels are made of non-marring TPR (Thermo Plastic
Rubber)
> Total lock, both wheel and swivel lock

→ Swiveling Caster → Swiveling Caster

60
4 - Ø9 (2 3/8")
4 - Ø9
75 48
(3") 53 (2 1/16") (1 7/8")
53 75
(2 1/16") (3")
72
(2 7/8")
72 93
(2 7/8") (3 11/16") 2.5 (1/8")
93 2.5 (1/8") Plate
6 Plate (3 11/16")
Support Brake
Support B
Casters, Feet, Legs, Table Fittings
Outer B A
Wheel
A Inner
Wheel
Inner
Wheel Outer 32
32 Wheel (1 1/4")
(1 1/4") 63
63 (2 13/16")
(2 13/16")
> With brake
> Material: Outer wheel: TPR; Color: gray > Material: Outer wheel: TPR; Color: gray
Inner wheel: Nylon; Color: light gray Inner wheel: Nylon; Color: light gray
Support/plate: Steel; Finish: zinc-plated Support/plate: Steel; Finish: zinc-plated
A B Weight capacity Item No. A B Weight capacity Item No.
Ø100 (4") 142 (5 5/8") 70 kg (154 lbs.) 670.12.901 Ø100 (4") 142 (5 5/8") 70 kg (154 lbs.) 670.13.901
Ø125 (5") 170 (6 3/4") 90 kg (198 lbs.) 670.12.902 Ø125 (5") 170 (6 3/4") 90 kg (198 lbs.) 670.13.902

→ Fixed Caster

4 - Ø9
> Material: Outer wheel: TPR; Color: gray
Inner wheel: Nylon; Color: light gray
53 80 Support/plate: Steel; Finish: zinc-plated
(2 1/16") (3 1/8")

72 A B Weight capacity Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(2 7/8") Ø100 (4") 142 (5 5/8") 70 kg (154 lbs.) 670.14.901
99
(3 7/8") Ø125 (5") 170 (6 3/4") 90 kg (198 lbs.) 670.14.902

Support
Outer B
Wheel
A
Inner
Wheel
32
(1 1/4")

FC 6.12 www.hafele.com/us
