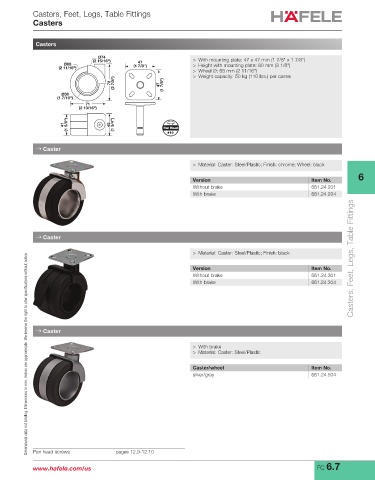

P. 433

Casters, Feet, Legs, Table Fittings
            Casters


             Casters

                                 Ø74
                               (2 15/16")     47                >  With mounting plate: 47 x 47 mm (1 7/8" x 1 7/8")
                      Ø68                                       >  Height with mounting plate: 80 mm (3 1/8")
                    (2 11/16")               (1 7/8")
                                                                >  Wheel Ø: 68 mm (2 11/16")
                                                                >  Weight capacity: 50 kg (110 lbs.) per caster
                                      (2 7/8")
                                     73              47  (1 7/8")
                     Ø36
                    (1 7/16")
                             71
                           (2 13/16")
                       (1 5/8")       (1 3/4")
                      41             45               Pan Head
                                                        #10

             → Caster

                                                                >  Material: Caster: Steel/Plastic; Finish: chrome; Wheel: black
                                                                                                                      6
                                                                Version                                Item No.
                                                                Without brake                          661.24.201
                                                                With brake                             661.24.204







             → Caster

                                                                >  Material: Caster: Steel/Plastic; Finish: black   Casters, Feet, Legs, Table Fittings
          Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
                                                                Version                                Item No.
                                                                Without brake                          661.24.301
                                                                With brake                             661.24.304








             → Caster

                                                                >  With brake
                                                                >  Material: Caster: Steel/Plastic

                                                                Caster/wheel                           Item No.
                                                                silver/gray                            661.24.504














            Pan head screws            pages 12.9-12.10

            www.hafele.com/us                                                                            FC 6.7
