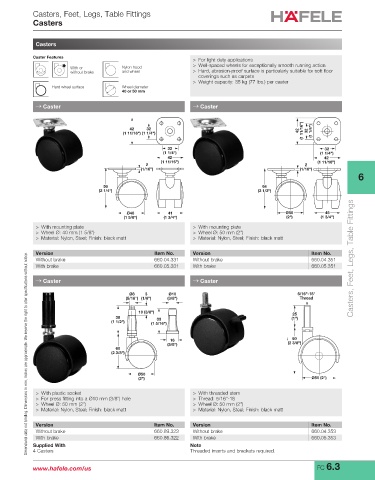

Casters, Feet, Legs, Table Fittings
Casters

Casters

Caster Features > For light duty applications
With or Nylon hood > Well-spaced wheels for exceptionally smooth running action
without brake and wheel > Hard, abrasion-proof surface is particularly suitable for soft floor
coverings such as carpets
> Weight capacity: 35 kg (77 lbs.) per caster
Hard wheel surface Wheel diameter
40 or 50 mm

→ Caster → Caster

(1 11/16") 42 32 (1 1/4")
42 32
(1 11/16") (1 1/4")

32 32
(1 1/4") (1 1/4")
42 42
(1 11/16") (1 11/16")
2 2
(1/16") (1/16")
6
56 64
(2 1/4") (2 1/2")

Ø40 41 Ø50 45
(1 5/8") (1 3/4") (2") (1 3/4")
> With mounting plate > With mounting plate
> Wheel Ø: 40 mm (1 5/8") > Wheel Ø: 50 mm (2")
> Material: Nylon, Steel; Finish: black matt > Material: Nylon, Steel; Finish: black matt

Version Item No. Version Item No.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Without brake 660.04.331 Without brake 660.04.351 Casters, Feet, Legs, Table Fittings
With brake 660.05.331 With brake 660.05.351

→ Caster → Caster
Ø8 3 Ø10 5/16"-18"
(5/16") (1/8") (3/8") Thread

10 (3/8") 25
38 33 (1")
16.5
(1 1/2") (1 5/16") (5/8")
Ø5
ø5
16 (3/16") M4 60
(5/8") (2 3/8")
60
(2 3/8") 1.5
(1/16")
Ø50
(2") Ø50 (2")

> With plastic socket > With threaded stem
> For press fitting into a Ø10 mm (3/8") hole > Thread: 5/16"-18
> Wheel Ø: 50 mm (2") > Wheel Ø: 50 mm (2")
> Material: Nylon, Steel; Finish: black matt > Material: Nylon, Steel; Finish: black matt

Version Item No. Version Item No.
Without brake 660.89.323 Without brake 660.04.353
With brake 660.86.322 With brake 660.05.353
Supplied With Note
4 Casters Threaded inserts and brackets required.

www.hafele.com/us FC 6.3
