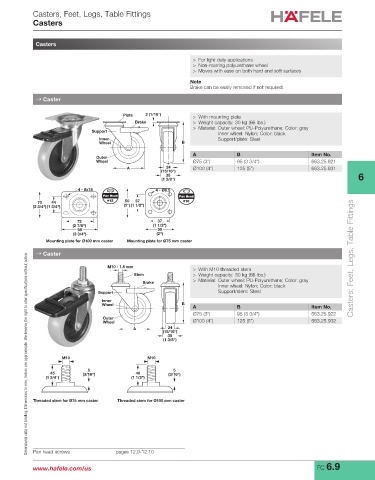

Casters, Feet, Legs, Table Fittings
Casters

Casters

> For light duty applications
> Non-marring polyurethane wheel
> Moves with ease on both hard and soft surfaces
Note
Brake can be easily removed if not required.

→ Caster

Plate 2 (1/16") > With mounting plate
Brake > Weight capacity: 30 kg (66 lbs.)
> Material: Outer wheel: PU-Polyurethane; Color: gray
Support
Inner wheel: Nylon; Color: black
Inner Support/plate: Steel
Wheel B
A B Item No.
Outer
Wheel Ø75 (3") 95 (3 3/4") 663.25.921
A 24 Ø100 (4") 125 (5") 663.25.931
(15/16")
35 6
(1 3/8")
4 - 8x18 4 - Ø6.5
Pan Head Pan Head
70 44 #12 50 37 #10
(2 3/4")(1 3/4") (2")(1 1/2")

72 37
(2 7/8") (1 1/2")
95 50
(3 3/4") (2")
Mounting plate for Ø100 mm caster Mounting plate for Ø75 mm caster
→ Caster Casters, Feet, Legs, Table Fittings
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
M10 - 1.5 mm
> With M10 threaded stem
Stem > Weight capacity: 30 kg (66 lbs.)
> Material: Outer wheel: PU-Polyurethane; Color: gray
Brake
Inner wheel: Nylon; Color: black
Support Support/stem: Steel
Inner
Wheel B
A B Item No.
Ø75 (3") 95 (3 3/4") 663.25.922
Outer
Wheel Ø100 (4") 125 (5") 663.25.932
A 24
(15/16")
35
(1 3/8")
M10 M10

5 5
45 (3/16") 40 (3/16")
(1 3/4") (1 1/2")

Threaded stem for Ø75 mm caster Threaded stem for Ø100 mm caster

Pan head screws pages 12.9-12.10

www.hafele.com/us FC 6.9
