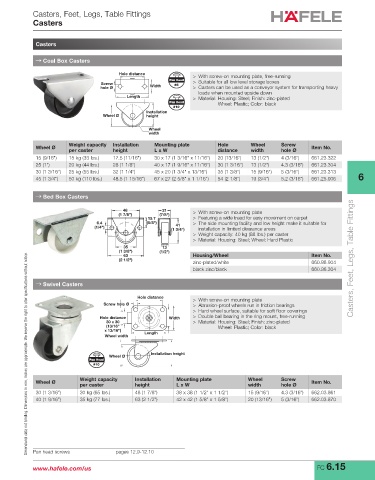

Casters, Feet, Legs, Table Fittings
Casters

Casters

→ Coal Box Casters
Hole distance > With screw-on mounting plate, free-running
Pan Head > Suitable for all low level storage boxes
Screw #8
hole Ø Width > Casters can be used as a conveyor system for transporting heavy
loads when mounted upside down
Length > Material: Housing: Steel; Finish: zinc-plated
Pan Head Wheel: Plastic; Color: black
#10
Installation
Wheel Ø height
Wheel
width
Wheel Ø Weight capacity Installation Mounting plate Hole Wheel Screw Item No.
per caster height L x W distance width hole Ø
15 (9/16") 15 kg (33 lbs.) 17.5 (11/16") 30 x 17 (1 3/16" x 11/16") 20 (13/16") 13 (1/2") 4 (3/16") 661.23.322
25 (1") 20 kg (44 lbs.) 28 (1 1/8") 40 x 17 (1 9/16" x 11/16") 30 (1 3/16") 13 (1/2") 4.3 (3/16") 661.23.304
30 (1 3/16") 25 kg (55 lbs.) 32 (1 1/4") 45 x 20 (1 3/4" x 13/16") 35 (1 3/8") 15 (9/16") 5 (3/16") 661.23.313
45 (1 3/4") 50 kg (110 lbs.) 48.5 (1 15/16") 67 x 27 (2 5/8" x 1 1/16") 54 (2 1/8") 19 (3/4") 5.2 (3/16") 661.25.906 6

→ Bed Box Casters

48 21 > With screw-on mounting plate
(1 7/8") (7/8")
15.7 > Featuring a wide tread for easy movement on carpet
6.4 (5/8") 41 > The side mounting facility and low height make it suitable for
(1/4") (1 3/4") installation in limited clearance areas
> Weight capacity: 40 kg (88 lbs.) per caster
> Material: Housing: Steel; Wheel: Hard Plastic
35 13
(1 3/8") (1/2")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
63 Housing/Wheel Item No.
(2 1/2") Casters, Feet, Legs, Table Fittings
zinc-plated/white 660.98.904
black zinc/black 660.98.304
→ Swivel Casters

Hole distance > With screw-on mounting plate
Screw hole Ø > Abrasion-proof wheels run in friction bearings
> Hard wheel surface, suitable for soft floor coverings
Hole distance Width > Double ball bearing in the ring mount, free-running
30 x 30 > Material: Housing: Steel; Finish: zinc-plated
(13/16” Wheel: Plastic; Color: black
x 13/16”) Length
Wheel width

Installation height
Wheel Ø
Pan Head
#10
Weight capacity Installation Mounting plate Wheel Screw
Wheel Ø Item No.
per caster height L x W width hole Ø
30 (1 3/16") 30 kg (65 lbs.) 48 (1 7/8") 38 x 38 (1 1/2" x 1 1/2") 15 (9/16") 4.3 (3/16") 662.03.861
40 (1 9/16") 35 kg (77 lbs.) 63 (2 1/2") 42 x 42 (1 5/8" x 1 5/8") 20 (13/16") 5 (3/16") 662.03.870

Pan head screws pages 12.9-12.10

www.hafele.com/us FC 6.15
