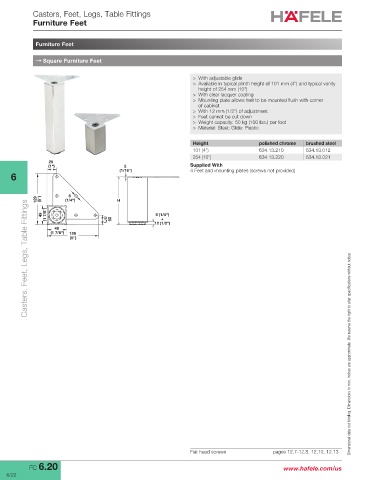

Page 446 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Casters, Feet, Legs, Table Fittings
Furniture Feet

Furniture Feet

→ Square Furniture Feet

> With adjustable glide
> Available in typical plinth height of 101 mm (4") and typical vanity
height of 254 mm (10")
> With clear lacquer coating
> Mounting plate allows feet to be mounted flush with corner
of cabinet
> With 12 mm (1/2") of adjustment
> Feet cannot be cut down
> Weight capacity: 50 kg (100 lbs.) per foot
> Material: Steel; Glide: Plastic

Height polished chrome brushed steel
101 (4") 634.13.210 634.13.012
254 (10") 634.13.220 634.13.021
25
(1") 2 Supplied With
(1/16") 4 Feet and mounting plates (screws not provided)
6

6
129 (5") (1/4") H
Casters, Feet, Legs, Table Fittings
(1 7/8") +
49 6 (1/4")
12 (1/2")
(1")
25
49
(1 7/8") 129
(5")

Flat head screws pages 12.7-12.8, 12.10, 12.13 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
FC 6.20 www.hafele.com/us
6/22
