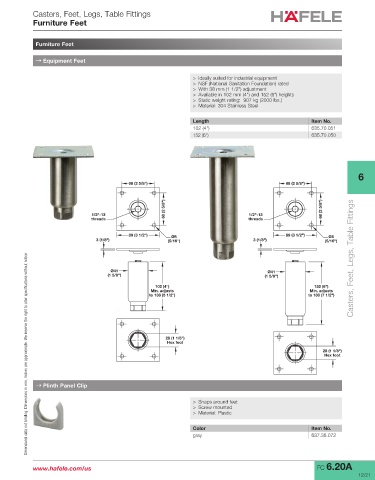

P. 447
Casters, Feet, Legs, Table Fittings
Furniture Feet
Furniture Feet
→ Equipment Feet
> Ideally suited for industrial equipment
> NSF (National Sanitation Foundation) rated
> With 38 mm (1 1/2") adjustment
> Available in 102 mm (4") and 152 (6") heights
> Static weight rating: 907 kg (2000 lbs.)
> Material: 304 Stainless Steel
Length Item No.
102 (4") 635.70.051
152 (6") 635.70.050
6
68 (2 5/8") 68 (2 5/8")
68 (2 5/8") 68 (2 5/8")
1/2"-13 1/2"-13
threads threads
89 (3 1/2") Ø8 89 (3 1/2") Ø8
3 (1/8") (5/16") 3 (1/8") (5/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Ø41 Ø41 Casters, Feet, Legs, Table Fittings
(1 5/8") (1 5/8")
102 (4") 152 (6")
Min. adjusts Min. adjusts
to 138 (5 1/2") to 188 (7 1/2")
28 (1 1/8")
Hex foot
28 (1 1/8")
Hex foot
→ Plinth Panel Clip
> Snaps around feet
> Screw mounted
> Material: Plastic
Color Item No.
gray 637.38.072
www.hafele.com/us FC 6.20A
12/21
