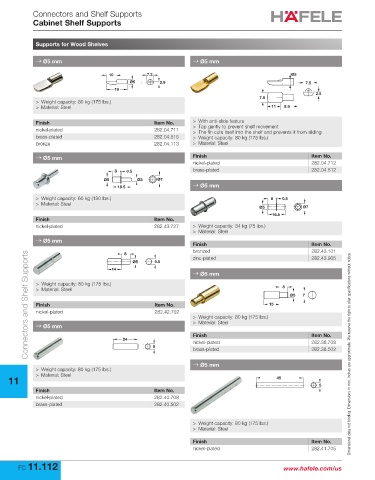

Connectors and Shelf Supports
Cabinet Shelf Supports

Supports for Wood Shelves

→ Ø5 mm → Ø5 mm

10 7.2 Ø5
Ø5 2.9 7.5
19
2.5
7.5
> Weight capacity: 80 kg (175 lbs.)
> Material: Steel 11 8.5
Finish Item No. > With anti-slide feature
nickel-plated 282.04.711 > Tap gently to prevent shelf movement
> The fin cuts itself into the shelf and prevents it from sliding
brass-plated 282.04.515 > Weight capacity: 80 kg (175 lbs.)
bronze 282.04.113 > Material: Steel

→ Ø5 mm Finish Item No.
nickel-plated 282.04.712
8 0.5 brass-plated 282.04.512
Ø5 Ø3 Ø7
18.5 → Ø5 mm
> Weight capacity: 60 kg (130 lbs.) 8 0.5
> Material: Steel
Ø5 Ø7
16.5
Finish Item No.
nickel-plated 282.43.727 > Weight capacity: 34 kg (75 lbs.)
> Material: Steel
→ Ø5 mm
Finish Item No.
bronzed 282.43.101
Connectors and Shelf Supports
8
zinc-plated 282.43.905
Ø5 5.5
14
→ Ø5 mm
> Weight capacity: 80 kg (175 lbs.)
> Material: Steel 8
Ø5 7
Finish Item No. 15
nickel-plated 282.42.702
> Weight capacity: 80 kg (175 lbs.)
> Material: Steel
→ Ø5 mm
Finish Item No.
24 nickel-plated 282.38.708
5
brass-plated 282.38.502 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Ø5 mm
> Weight capacity: 80 kg (175 lbs.)
> Material: Steel
11 45 5
Finish Item No.
nickel-plated 282.40.708
brass-plated 282.40.502

> Weight capacity: 80 kg (175 lbs.)
> Material: Steel
Finish Item No.
nickel-plated 282.41.705
