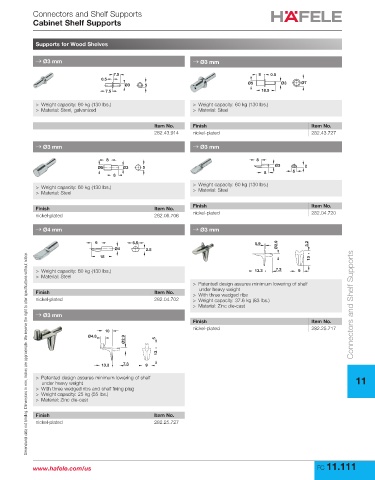

P. 1283
Connectors and Shelf Supports
Cabinet Shelf Supports
Supports for Wood Shelves
→ Ø3 mm → Ø3 mm
7.5 8 0.5
0.5
Ø3 5 Ø5 Ø3 Ø7
7.5 18.5
> Weight capacity: 60 kg (130 lbs.) > Weight capacity: 60 kg (130 lbs.)
> Material: Steel, galvanized > Material: Steel
Item No. Finish Item No.
282.43.914 nickel-plated 282.43.727
→ Ø3 mm → Ø3 mm
8 8
Ø5 Ø3 5 Ø3 2
8 5
8
> Weight capacity: 60 kg (130 lbs.) > Weight capacity: 60 kg (130 lbs.)
> Material: Steel > Material: Steel
Finish Item No. Finish Item No.
nickel-plated 282.06.706 nickel-plated 282.04.720
→ Ø4 mm → Ø3 mm
9 6.5 0.9 Ø2.9 3.2
Ø4 2.5
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
18
13
> Weight capacity: 60 kg (130 lbs.) 13.3 7.3 9
> Material: Steel
> Patented design assures minimum lowering of shelf
under heavy weight
Finish Item No. > With three wedged ribs
nickel-plated 282.04.702 > Weight capacity: 37.6 kg (83 lbs.)
> Material: Zinc die-cast Connectors and Shelf Supports
→ Ø3 mm
Finish Item No.
nickel-plated 282.25.717
10
Ø4.8
Ø2.9 5
13
13.3 7.3 9
> Patented design assures minimum lowering of shelf 11
under heavy weight
> With three wedged ribs and shelf fixing plug
> Weight capacity: 25 kg (55 lbs.)
> Material: Zinc die-cast
Finish Item No.
nickel-plated 282.25.727
www.hafele.com/us FC 11.111
