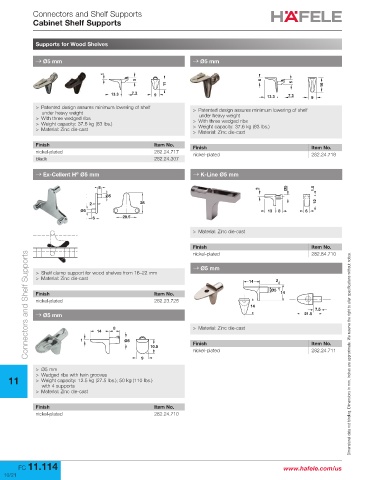

Connectors and Shelf Supports
Cabinet Shelf Supports

Supports for Wood Shelves

→ Ø5 mm → Ø5 mm

> Patented design assures minimum lowering of shelf > Patented design assures minimum lowering of shelf
under heavy weight under heavy weight
> With three wedged ribs > With three wedged ribs
> Weight capacity: 37.6 kg (83 lbs.) > Weight capacity: 37.6 kg (83 lbs.)
> Material: Zinc die-cast > Material: Zinc die-cast

Finish Item No. Finish Item No.
nickel-plated 282.24.717 nickel-plated 282.24.718
black 282.24.307

→ Ex-Cellent H Ø5 mm → K-Line Ø5 mm
®
8 3 Ø5 1.5
Ø5
2 28 12
Ø5 13 8 6
6 28.5
> Material: Zinc die-cast

Finish Item No.
Connectors and Shelf Supports
nickel-plated 282.84.710
→ Ø5 mm
> Shelf clamp support for wood shelves from 16–22 mm
> Material: Zinc die-cast
14 2
Ø5
Finish Item No. 14
nickel-plated 282.23.725
14
7.5
→ Ø5 mm 21.5
8 > Material: Zinc die-cast
14
1 Ø5 Finish Item No.
10.5
nickel-plated 282.24.711
9 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> Ø5 mm
> Wedged ribs with twin grooves
11 > Weight capacity: 12.5 kg (27.5 lbs.); 50 kg (110 lbs.)
with 4 supports
> Material: Zinc die-cast

Finish Item No.
nickel-plated 282.24.710

FC 11.114 www.hafele.com/us
10/21
