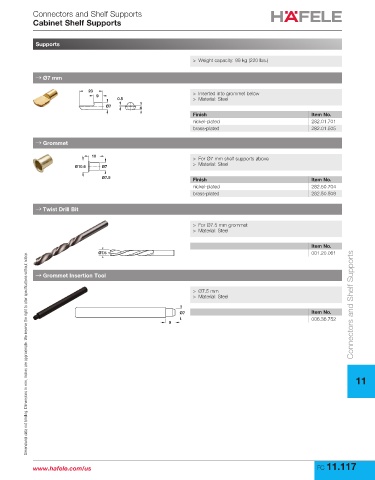

Connectors and Shelf Supports
Cabinet Shelf Supports

Supports

> Weight capacity: 99 kg (220 lbs.)

→ Ø7 mm

23 > Inserted into grommet below
9
0.5 > Material: Steel
Ø7 4
Finish Item No.
nickel-plated 282.01.701
brass-plated 282.01.505
→ Grommet

10
> For Ø7 mm shelf supports above
> Material: Steel
Ø10.6 Ø7
Ø7.5 Finish Item No.
nickel-plated 282.50.704
brass-plated 282.50.508

→ Twist Drill Bit

> For Ø7.5 mm grommet
> Material: Steel

Item No.
Ø7.5 001.20.061
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Grommet Insertion Tool

> Ø7.5 mm
> Material: Steel

Ø7 Item No. Connectors and Shelf Supports
006.36.752
9

11

www.hafele.com/us FC 11.117
