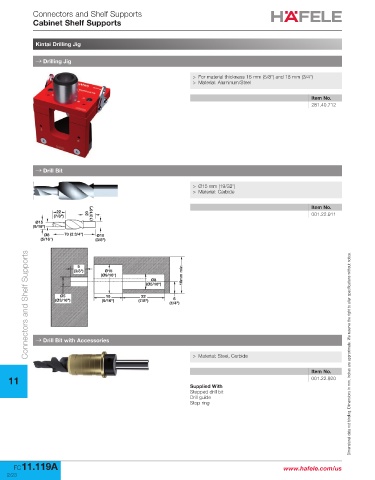

Connectors and Shelf Supports
Cabinet Shelf Supports
Kintai Drilling Jig
→ Drilling Jig
> For material thickness 16 mm (5/8") and 18 mm (3/4")
> Material: Aluminum/Steel
Item No.
281.40.712
→ Drill Bit
> Ø15 mm (19/32")
> Material: Carbide
22 (13/16") Item No.
001.22.911
(7/8") 20
Ø15
(9/16")
Ø8 70 (2 3/4") Ø10
(5/16") (3/8")
Connectors and Shelf Supports
9
(3/8") Ø15
(Ø9/16") 16mm min
Ø8
(Ø5/16")
Ø5 15 22
6
(Ø3/16") (9/16") (7/8") (1/4")
→ Drill Bit with Accessories
> Material: Steel, Carbide Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Item No.
11 001.22.920
Supplied With
Stepped drill bit
Drill guide
Stop ring
FC 11.119A www.hafele.com/us
