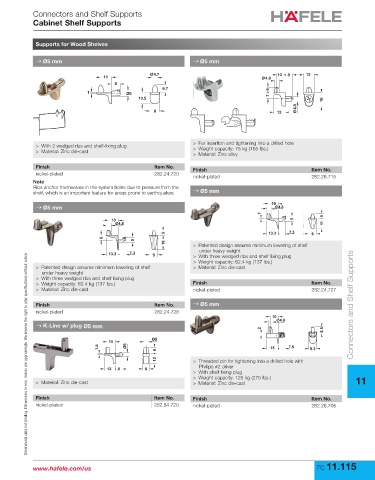

Connectors and Shelf Supports
Cabinet Shelf Supports

Supports for Wood Shelves

→ Ø5 mm → Ø5 mm

Ø4.7 10 8 12
10 Ø4.8
8
6.7 6
1 Ø5
10.5 7
16
9 13 Ø4.8

> For insertion and tightening into a drilled hole
> With 2 wedged ribs and shelf-fixing plug > Weight capacity: 75 kg (165 lbs.)
> Material: Zinc die-cast > Material: Zinc alloy

Finish Item No. Finish Item No.
nickel-plated 282.24.720 nickel-plated 282.26.715
Note
Ribs anchor themselves in the system holes due to pressure from the
shelf, which is an important feature for areas prone to earthquakes. → Ø5 mm

→ Ø5 mm

> Patented design assures minimum lowering of shelf
under heavy weight
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> With three wedged ribs and shelf fixing plug
> Weight capacity: 62.4 kg (137 lbs.)
> Patented design assures minimum lowering of shelf > Material: Zinc die-cast
under heavy weight
> With three wedged ribs and shelf fixing plug
> Weight capacity: 62.4 kg (137 lbs.) Finish Item No.
> Material: Zinc die-cast nickel-plated 282.24.727

Finish Item No. → Ø5 mm Connectors and Shelf Supports
nickel-plated 282.24.728

→ K-Line w/ plug Ø5 mm

Ø5
10
1.5 Ø5 6
12 > Threaded pin for tightening into a drilled hole with
Phillips #2 driver
13 8 6
> With shelf fixing plug
> Weight capacity: 125 kg (275 lbs.)
> Material: Zinc die-cast > Material: Zinc die-cast 11
Finish Item No. Finish Item No.
nickel-plated 282.84.720 nickel-plated 282.26.706

www.hafele.com/us FC 11.115
