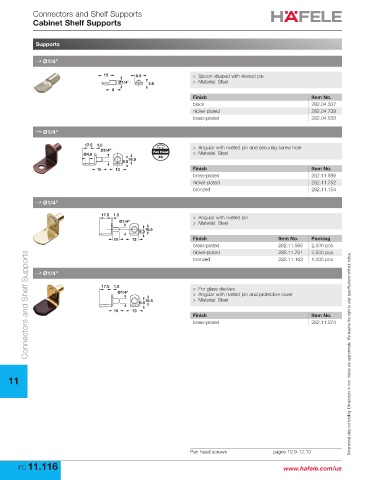

Connectors and Shelf Supports
Cabinet Shelf Supports
Supports
→ Ø1/4"
13 9.5 > Spoon-shaped with riveted pin
Ø1/4" 3.6 > Material: Steel
9
Finish Item No.
black 282.04.337
nickel-plated 282.04.739
brass-plated 282.04.533
→ Ø1/4"
17.5 1.5 > Angular with riveted pin and securing screw hole
Ø1/4" Pan Head
Ø4.6 #8 > Material: Steel
8.5 16.5
10 13 Finish Item No.
brass-plated 282.11.556
nickel-plated 282.11.752
bronzed 282.11.154
→ Ø1/4"
17.5 1.5 > Angular with riveted pin
Ø1/4" > Material: Steel
8.5 16.5
10 13 Finish Item No. Packing
brass-plated 282.11.565 2,500 pcs.
nickel-plated 282.11.761 2,500 pcs.
Connectors and Shelf Supports
bronzed 282.11.163 1,000 pcs.
→ Ø1/4"
17.5 1.5 > For glass shelves
Ø1/4" > Angular with riveted pin and protective cover
16.5 > Material: Steel
6.5
10 13
Finish Item No.
brass-plated 282.11.574
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Pan head screws pages 12.9-12.10
