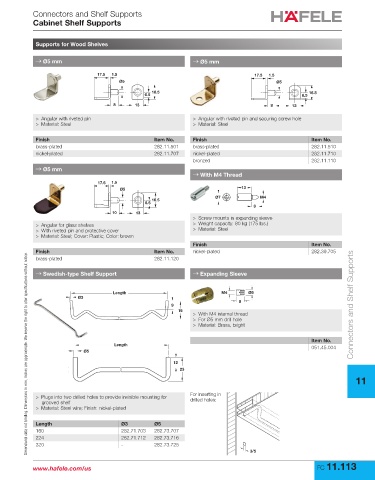

Connectors and Shelf Supports
Cabinet Shelf Supports

Supports for Wood Shelves

→ Ø5 mm → Ø5 mm

17.5 1.5 17.5 1.5
Ø5 Ø5
16.5 16.5
6.5 6.5
8 13 8 13

> Angular with riveted pin > Angular with riveted pin and securing screw hole
> Material: Steel > Material: Steel

Finish Item No. Finish Item No.
brass-plated 282.11.501 brass-plated 282.11.510
nickel-plated 282.11.707 nickel-plated 282.11.710
bronzed 282.11.110
→ Ø5 mm
→ With M4 Thread
17.5 1.5
Ø5 13
Ø7 M4
16.5
6.5
8
10 13
> Screw mounts in expanding sleeve
> Angular for glass shelves > Weight capacity: 80 kg (175 lbs.)
> With riveted pin and protective cover > Material: Steel
> Material: Steel; Cover: Plastic; Color: brown
Finish Item No.
Finish Item No. nickel-plated 282.39.705
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
brass-plated 282.11.120
→ Swedish-type Shelf Support → Expanding Sleeve

Length M4 Ø5
Ø3
8
9 Connectors and Shelf Supports
16
> With M4 internal thread
> For Ø5 mm drill hole
> Material: Brass, bright

Item No.
Length 051.45.004
Ø5
12
23
11

> Plugs into two drilled holes to provide invisible mounting for For inserting in
grooved shelf drilled holes:
> Material: Steel wire; Finish: nickel-plated

Length Ø3 Ø5
160 282.71.703 282.73.707
224 282.71.712 282.73.716
320 - 282.73.725
3/5

www.hafele.com/us FC 11.113
