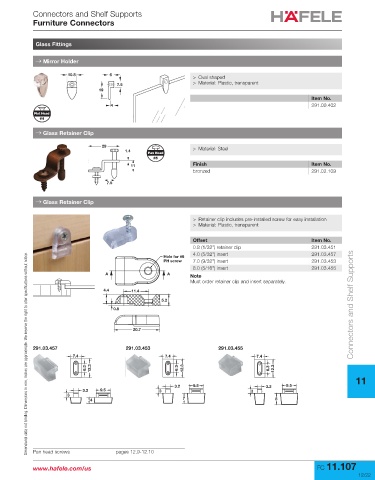

Connectors and Shelf Supports
Furniture Connectors

Glass Fittings

→ Mirror Holder

10.5 6
> Oval shaped
7.5 > Material: Plastic, transparent
19
Item No.
4 291.09.402
Flat Head
#4
→ Glass Retainer Clip

29 > Material: Steel
1.4
Pan Head
#5
11 Finish Item No.
bronzed 291.02.109

7.5

→ Glass Retainer Clip

> Retainer clip includes pre-installed screw for easy installation
> Material: Plastic, transparent

Offset Item No.
0.8 (1/32") retainer clip 291.03.451
4.0 (5/32") insert 291.03.457
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Hole for #6
PH screw 7.0 (9/32") insert 291.03.453
8.0 (5/16") insert 291.03.455
A A Note
Must order retainer clip and insert separately.
4.4 11.4
5.2
0.8 Connectors and Shelf Supports

20.7

291.03.457 291.03.453 291.03.455
7.4 7.4 7.4
6.3 12.3 6.3 12.3 6.3 12.3
11
3.2 9.5 3.2 9.5
3.2 9.5 3 3
3
4 7 8

Pan head screws pages 12.9-12.10

www.hafele.com/us FC 11.107
