P. 1274

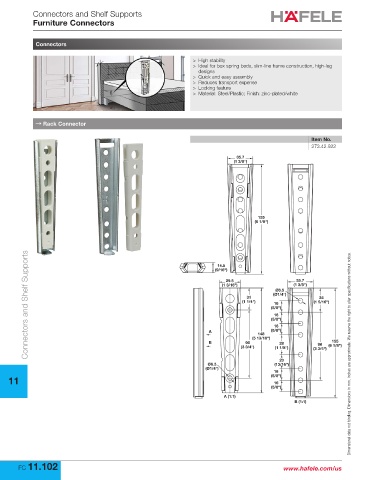

Connectors and Shelf Supports
Furniture Connectors
Connectors
> High stability
> Ideal for box spring beds, slim-line frame construction, high-leg
designs
> Quick and easy assembly
> Reduces transport expense
> Locking feature
> Material: Steel/Plastic; Finish: zinc-plated/white
→ Rack Connector
Item No.
273.42.922
35.7
(1 3/8")
155
(6 1/8")
Connectors and Shelf Supports
14.5
(9/16")
29.5 35.7
(1 3/16") (1 3/8")
Ø6.5
(Ø1/4")
31 34
(1 1/4") 16 (1 5/16")
(5/8")
16
(5/8")
16
A 148 (5/8")
(5 13/16")
B 96 28 96 155
(3 3/4") (1 1/8") (3 3/4") (6 1/8")
20 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Ø6.3 (13/16")
(Ø1/4")
16
11 (5/8")
16
(5/8")
A (1:1)
B (1:1)
FC 11.102 www.hafele.com/us
