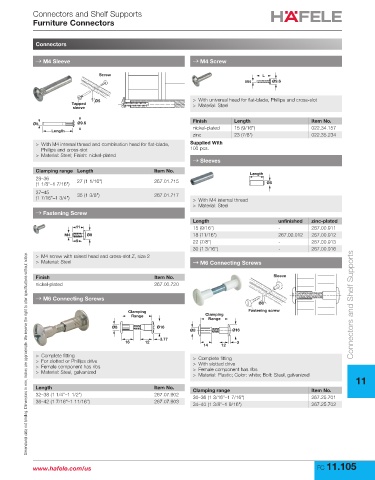

Connectors and Shelf Supports
Furniture Connectors

Connectors

→ M4 Sleeve → M4 Screw

Screw L
M4 Ø9.6

Ø5 > With universal head for flat-blade, Phillips and cross-slot
Tapped > Material: Steel
sleeve
Finish Length Item No.
Ø5 Ø9.6
nickel-plated 15 (9/16") 022.34.157
Length
zinc 23 (7/8") 022.35.234
> With M4 internal thread and combination head for flat-blade, Supplied With
Phillips and cross-slot 100 pcs.
> Material: Steel; Finish: nickel-plated
→ Sleeves
Clamping range Length Item No.
Length
28–36
(1 1/8"–1 7/16") 27 (1 1/16") 267.01.715 Ø5
37–45 35 (1 3/8") 267.01.717
(1 7/16"–1 3/4") > With M4 internal thread
> Material: Steel
→ Fastening Screw
Length unfinished zinc-plated
11 15 (9/16") - 267.00.911
M4 Ø9 18 (11/16") 267.00.012 267.00.912
9 22 (7/8") - 267.00.913
30 (1 3/16") - 267.00.916
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> M4 screw with raised head and cross-slot Z, size 2
> Material: Steel → M6 Connecting Screws

Finish Item No. Sleeve
nickel-plated 267.00.720

→ M6 Connecting Screws
Ø8 Connectors and Shelf Supports
Clamping Fastening screw
Range Clamping
Range
Ø8 Ø16
Ø8 Ø16
3.77
16 12 3
14 12
> Complete fitting > Complete fitting
> For slotted or Phillips drive > With slotted drive
> Female component has ribs > Female component has ribs
> Material: Steel, galvanized > Material: Plastic; Color: white; Bolt: Steel, galvanized
11
Length Item No. Clamping range Item No.
32–38 (1 1/4"–1 1/2") 267.07.902 30–36 (1 3/16"–1 7/16") 267.25.701
36–42 (1 7/16"–1 11/16") 267.07.903 34–40 (1 3/8"–1 9/16") 267.25.702

www.hafele.com/us FC 11.105
