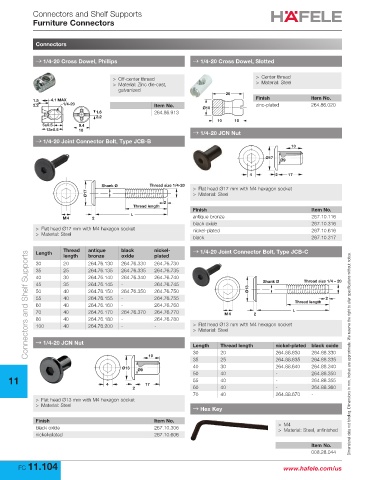

Connectors and Shelf Supports
Furniture Connectors

Connectors

→ 1/4-20 Cross Dowel, Phillips → 1/4-20 Cross Dowel, Slotted

> Off-center thread > Center thread
> Material: Zinc die-cast, > Material: Steel
galvanized
20
1.5 4.1 MAX Finish Item No.
2.2 1/4-20 Item No. Ø10 zinc-plated 264.86.020
1.6 264.86.913
2.2
10 10
5±0.5 9.4
13±0.5 10 → 1/4-20 JCN Nut
→ 1/4-20 Joint Connector Bolt, Type JCB-B
10

Ø17
Ø9
4 2 17
Shank Ø Thread size 1/4-20 > Flat head Ø17 mm with M4 hexagon socket
Ø17 > Material: Steel
2
Thread length
Finish Item No.
L
M4 2 antique bronze 267.10.116
black oxide 267.10.316
> Flat head Ø17 mm with M4 hexagon socket nickel-plated 267.10.616
> Material: Steel
black 267.10.317
Thread antique black nickel- → 1/4-20 Joint Connector Bolt, Type JCB-C
Length length bronze oxide plated
Connectors and Shelf Supports
30 20 264.76.130 264.76.330 264.76.730
35 25 264.76.135 264.76.335 264.76.735
40 30 264.76.140 264.76.340 264.76.740
45 35 264.76.145 - 264.76.745 Shank Ø Thread size 1/4 – 20
50 40 264.76.150 264.76.350 264.76.750 Ø13
55 40 264.76.155 - 264.76.755 2
60 40 264.76.160 - 264.76.760 Thread length
70 40 264.76.170 264.76.370 264.76.770 M4 2 L
80 40 264.76.180 - 264.76.780
100 40 264.76.200 - - > Flat head Ø13 mm with M4 hexagon socket
> Material: Steel
→ 1/4-20 JCN Nut
Length Thread length nickel-plated black oxide
30 20 264.88.630 264.88.330
10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
35 25 264.88.635 264.88.335
Ø13 Ø9 40 30 264.88.640 264.88.340
50 40 - 264.88.350
11 55 40 - 264.88.355
4
2 17 60 40 - 264.88.360
70 40 264.88.670 -
> Flat head Ø13 mm with M4 hexagon socket
> Material: Steel
→ Hex Key
Finish Item No. > M4
black oxide 267.10.306 > Material: Steel, unfinished
nickel-plated 267.10.606
Item No.
008.28.044
