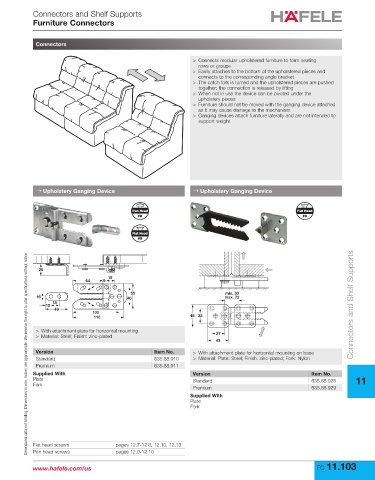

Connectors and Shelf Supports
Furniture Connectors

Connectors

> Connects modular upholstered furniture to form seating
rows or groups
> Easily attaches to the bottom of the upholstered pieces and
connects to the corresponding angle bracket
> The catch fork is turned and the upholstered pieces are pushed
together; the connection is released by lifting
> When not in use the device can be pivoted under the
upholstery pieces
> Furniture should not be moved with the ganging device attached
as it may cause damage to the mechanism
> Ganging devices attach furniture laterally and are not intended to
support weight

→ Upholstery Ganging Device → Upholstery Ganging Device

Pan Head Flat Head
#8 #9

Flat Head
#9

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

25
18
64 9
55 min. 30
15 40 max. 72
18
12 Connectors and Shelf Supports
49
100
110 48 32
> With attachment plate for horizontal mounting
> Material: Steel; Finish: zinc-plated 27
43
Version Item No. > With attachment plate for horizontal mounting on base
Standard 635.88.910 > Material: Plate: Steel; Finish: zinc-plated; Fork: Nylon
Premium 635.88.911
Supplied With Version Item No.
Plate Standard 635.88.928 11
Fork
Premium 635.88.929
Supplied With
Plate
Fork

Flat head screws pages 12.7-12.8, 12.10, 12.13
Pan head screws pages 12.9-12.10
