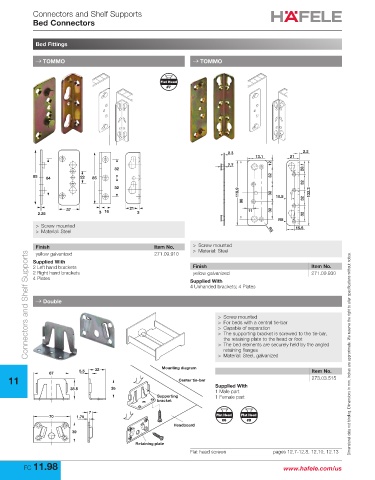

Connectors and Shelf Supports
Bed Connectors

Bed Fittings

→ TOMMO → TOMMO

Flat Head
#7

2.3 2.3
13.1 21
7.7 12
32 28.1
85 64 22 85 32
32
32
119.9 32 10.5 132.3
96 32
37 16 21 11 32
2.25 3 3 32
R8
> Screw mounted 15.5
> Material: Steel R5

Finish Item No. > Screw mounted
Connectors and Shelf Supports
yellow galvanized 271.09.910 > Material: Steel
Supplied With
2 Left hand brackets Finish Item No.
2 Right hand brackets yellow galvanized 271.09.930
4 Plates Supplied With
4 Unhanded brackets; 4 Plates

→ Double

> Screw mounted
> For beds with a central tie-bar
> Capable of separation
> The supporting bracket is screwed to the tie-bar,
the retaining plate to the head or foot
> The bed elements are securely held by the angled
retaining flanges
> Material: Steel, galvanized Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

5.5 32 Mounting diagram Item No.
67
11 Center tie-bar 273.03.515
38.5 35 Supplied With
1 Male part
Supporting 1 Female part
bracket
7
70 1.75 Flat Head Flat Head
#6 #8
Headboard
39
Retaining plate
Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 11.98 www.hafele.com/us
