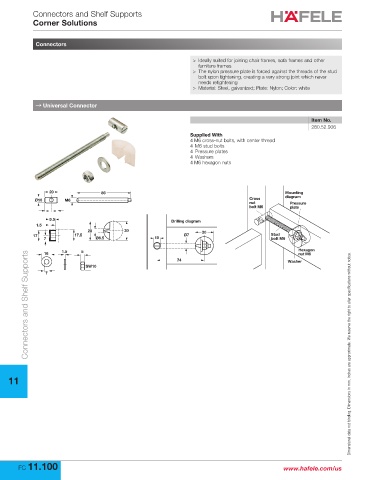

Connectors and Shelf Supports
Corner Solutions
Connectors
> Ideally suited for joining chair frames, sofa frames and other
furniture frames
> The nylon pressure plate is forced against the threads of the stud
bolt upon tightening, creating a very strong joint which never
needs retightening
> Material: Steel, galvanized; Plate: Nylon; Color: white
→ Universal Connector
Item No.
260.52.906
Supplied With
4 M6 cross-nut bolts, with center thread
4 M6 stud bolts
4 Pressure plates
4 Washers
4 M6 hexagon nuts
20 86 Mounting
Ø10 M6 Cross diagram
nut Pressure
bolt M6 plate
= =
9.5 Drilling diagram
1.5
28 30 30
17 17.5 Ø7 Stud
7 Ø6.5 10 bolt M6
Connectors and Shelf Supports
16 1.5 5 Hexagon
nut M6
74 Washer
SW10
7
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
