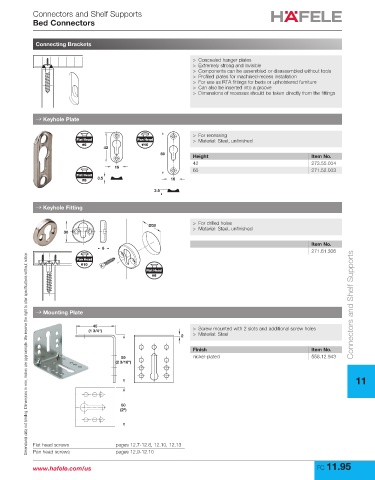

P. 1267
Connectors and Shelf Supports
Bed Connectors
Connecting Brackets
> Concealed hanger plates
> Extremely strong and invisible
> Components can be assembled or disassembled without tools
> Profiled plates for machined-recess installation
> For use as RTA fittings for beds or upholstered furniture
> Can also be inserted into a groove
> Dimensions of recesses should be taken directly from the fittings
→ Keyhole Plate
> For recessing
Flat Head Pan Head > Material: Steel, unfinished
#6 #10
42
60
Height Item No.
42 273.55.004
16
60 271.52.003
Flat Head
#5 3.5 16
3.5
→ Keyhole Fitting
> For drilled holes
Ø30 > Material: Steel, unfinished
30
Item No.
6
271.61.306
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Pan Head
#10
Flat Head
#6
→ Mounting Plate Connectors and Shelf Supports
45
(1 3/4") > Screw mounted with 2 slots and additional screw holes
2 > Material: Steel
Finish Item No.
55 nickel-plated 558.12.943
(2 3/16")
11
50
(2")
Flat head screws pages 12.7-12.8, 12.10, 12.13
Pan head screws pages 12.9-12.10
www.hafele.com/us FC 11.95
