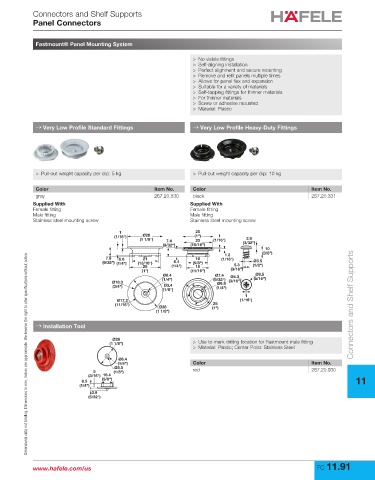

Connectors and Shelf Supports
Panel Connectors

Fastmount® Panel Mounting System

> No visible fittings
> Self-aligning installation
> Perfect alignment and secure mounting
> Remove and refit panels multiple times
> Allows for panel flex and expansion
> Suitable for a variety of materials
> Self-tapping fittings for thinner materials
> For thinner materials
> Screw or adhesive mounted
> Material: Plastic

→ Very Low Profile Standard Fittings → Very Low Profile Heavy-Duty Fittings

> Pull-out weight capacity per clip: 5 kg > Pull-out weight capacity per clip: 10 kg

Color Item No. Color Item No.
gray 267.20.530 black 267.20.331
Supplied With Supplied With
Female fitting Female fitting
Male fitting Male fitting
Stainless steel mounting screw Stainless steel mounting screw

1 25
(1/16") Ø28 (1") 1
(1 1/8") 7.4 23 (1/16") 2.6
(9/32") (15/16") (3/32")
10
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
1.2 (3/8")
7.6 6.6 21 16 (1/16")
(9/32") (1/4") (13/16") 6.4 (5/8") Ø3.5
25 (1/4") 18 5.3 (1/8")
(1") (11/16") (3/16")
Ø6.4 Ø7.4 Ø4.3 Ø8.5
(1/4") (9/32") (5/16")
Ø18.3 Ø6.8 (3/16")
(3/4") Ø3.4 (1/4")
(1/8")
1
Ø17.2 (1/16")
(11/16") 25 Connectors and Shelf Supports
Ø28 (1")
(1 1/8")
→ Installation Tool
Ø28 > Use to mark drilling location for Fastmount male fitting
(1 1/8")
> Material: Plastic; Center Point: Stainless Steel
Ø6.4
(1/4") Color Item No.
Ø3.5
5 (1/8") red 267.20.930
(3/16") 16.4
6.5 (5/8") 11
(1/4")
3.9
(5/32")

www.hafele.com/us FC 11.91
