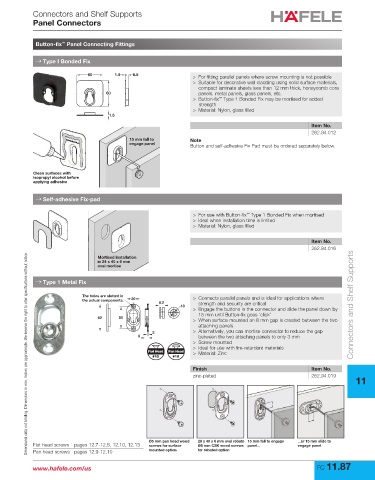

Connectors and Shelf Supports
Panel Connectors

Button-fix Panel Connecting Fittings
™

→ Type I Bonded Fix

60 1.5 6.5 > For fitting parallel panels where screw mounting is not possible
> Suitable for decorative wall cladding using solid surface materials,
compact laminate sheets less than 12 mm thick, honeycomb core
60 panels, metal panels, glass panels, etc.
> Button-fix Type 1 Bonded Fix may be mortised for added
™
strength
> Material: Nylon, glass filled
1.5
Item No.
262.94.012
15 mm fall to Note
engage panel Button and self-adhesive Fix Pad must be ordered separately below.

Clean surfaces with
isopropyl alcohol before
applying adhesive

→ Self-adhesive Fix-pad

> For use with Button-fix Type 1 Bonded Fix when mortised
™
> Ideal when installation time is limited
> Material: Nylon, glass filled

Item No.
262.94.016
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Mortised installation
in 24 x 40 x 6 mm
oval mortise

→ Type 1 Metal Fix

The holes are slotted in 30 > Connects parallel panels and is ideal for applications where
the actual components.
8.2 strength and security are critical
18 Connectors and Shelf Supports
> Engage the buttons in the connector and slide the panel down by
15 mm until Button-fix goes ‘click’
62 50
> When surface mounted an 8 mm gap is created between the two
attaching panels
3 > Alternatively, you can mortise connector to reduce the gap
8 between the two attaching panels to only 3 mm
> Screw mounted
> Ideal for use with fire-retardant materials
Flat Head Pan Head > Material: Zinc
#10 #10
Finish Item No.
zinc-plated 262.94.019
11

Ø5 mm pan head wood 28 x 40 x 6 mm oval rebate 15 mm fall to engage ...or 15 mm slide to
Flat head screws pages 12.7-12.8, 12.10, 12.13 screws for surface Ø5 mm CSK wood screws panel... engage panel
Pan head screws pages 12.9-12.10 mounted option for rebated option
