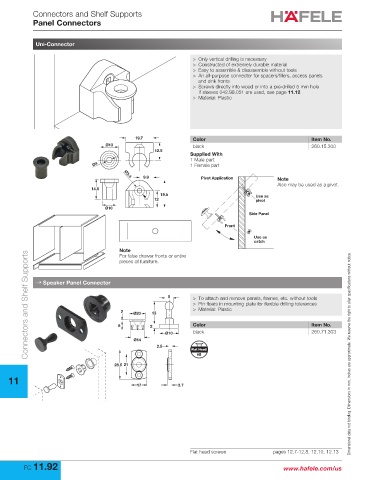

P. 1264
Connectors and Shelf Supports
Panel Connectors
Uni-Connector
> Only vertical drilling is necessary
> Constructed of extremely durable material
> Easy to assemble & disassemble without tools
> An all-purpose connector for spacers/fillers, access panels
and sink fronts
> Screws directly into wood or into a pre-drilled 5 mm hole
if sleeves 042.98.051 are used, see page 11.12
> Material: Plastic
19.7 Color Item No.
Ø13 black 260.15.300
12.5
Supplied With
1 Male part
Ø4 1 Female part
9.9 Pivot Application Note
Ø3.4
Also may be used as a pivot.
14.5
19.5 Use as
12 pivot
Ø10
Side Panel
Front
Use as
catch
Note
Connectors and Shelf Supports
For false drawer fronts or entire
pieces of furniture.
→ Speaker Panel Connector
5 > To attach and remove panels, frames, etc. without tools
> Pin floats in mounting plate for flexible drilling tolerances
> Material: Plastic
2 Ø20 13
8 2 Color Item No.
Ø10 black 260.71.303
Ø14
2.5
Flat Head
#5 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
28.5 21
11 17 3.7
Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 11.92 www.hafele.com/us
