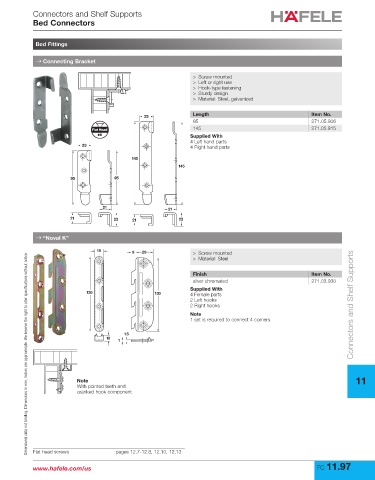

P. 1269

Connectors and Shelf Supports
            Bed Connectors


             Bed Fittings


             → Connecting Bracket

                                                                >  Screw mounted
                                                                >  Left or right use
                                                                >  Hook-type fastening
                                                                >  Sturdy design
                                                                >  Material: Steel, galvanized

                                                                Length                                 Item No.
                                                23
                                                                95                                     271.05.906
                               Flat Head                        145                                    271.05.915
                                 #6                            Supplied With
                                                               4 Left hand parts
                            23                                 4 Right hand parts

                                            145
                                                           145

                        95            95




                                   21                   21
                        21            23    21             23


             → “Noval K”

                                 15         9  29               >  Screw mounted
          Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
                                                                >  Material: Steel
                                                                Finish                                 Item No.
                                                                silver chromated                       271.03.930
                                                               Supplied With
                             130                   130         4 Female parts
                                                               2 Left hooks
                                                               2 Right hooks                                        Connectors and Shelf Supports
                                                               Note
                                                               1 set is required to connect 4 corners.


                                         1.5
                                    10  1






                          Note                                                                                       11
                          With pointed teeth and
                          cranked hook component











            Flat head screws           pages 12.7-12.8, 12.10, 12.13

            www.hafele.com/us                                                                            FC 11.97
