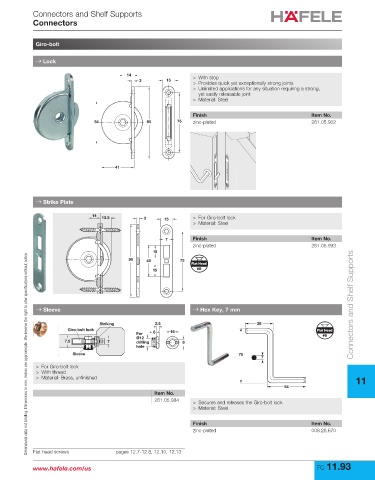

P. 1265
Connectors and Shelf Supports
Connectors
Giro-bolt
→ Lock
14 > With stop
3 15 > Provides quick yet exceptionally strong joints
> Unlimited applications for any situation requiring a strong,
yet easily releasable joint
> Material: Steel
Finish Item No.
54 90 75 zinc-plated 261.05.902
41
→ Strike Plate
14 13.5 3 15 > For Giro-bolt lock
> Material: Steel
7 Finish Item No.
zinc-plated 261.05.993
15
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
90 40 75
Flat Head
15 #8
→ Sleeve → Hex Key, 7 mm Connectors and Shelf Supports
Striking 2.5 38
Giro-bolt lock 16 Flat Head
For 6 #8
Ø12
7.5 7 drilling 9
hole
Sleeve 75
7
> For Giro-bolt lock
> With thread
> Material: Brass, unfinished 11
54
Item No.
261.05.984 > Secures and releases the Giro-bolt lock
> Material: Steel
Finish Item No.
zinc-plated 008.28.670
Flat head screws pages 12.7-12.8, 12.10, 12.13
www.hafele.com/us FC 11.93
