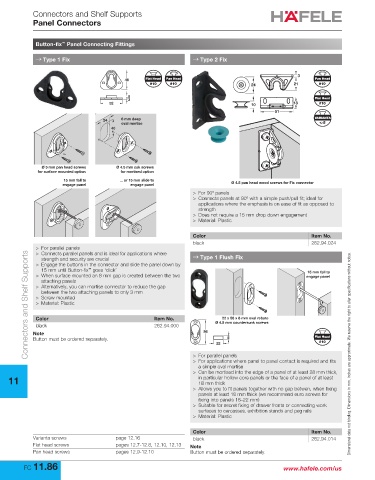

Connectors and Shelf Supports
Panel Connectors

Button-fix Panel Connecting Fittings
™
→ Type 1 Fix → Type 2 Fix

3
46 Flat Head Pan Head Pan Head
#10 #10 24 21 #10
5 Flat Head
3
52 10 18 #10
51
24 6 mm deep VARIANTA
oval mortise 5
40

Ø 5 mm pan head screws Ø 4.5 mm csk screws
for surface mounted option for mortised option
15 mm fall to ... or 15 mm slide to
engage panel engage panel Ø 4.5 pan head wood screws for Fix connector
> For 90º panels
> Connects panels at 90º with a simple push/pull fit; ideal for
applications where the emphasis is on ease of fit as opposed to
strength
15 > Does not require a 15 mm drop down engagement
15 > Material: Plastic

Color Item No.
black 262.94.024
> For parallel panels
> Connects parallel panels and is ideal for applications where
Connectors and Shelf Supports
strength and security are crucial → Type 1 Flush Fix 22 x 56 x 8 mm oval rebate
> Engage the buttons in the connector and slide the panel down by Ø 4.5 mm countersunk screws
15 mm until Button-fix goes ‘click’ 15 mm fall to
™
> When surface mounted an 8 mm gap is created between the two engage panel
attaching panels
> Alternatively, you can mortise connector to reduce the gap
between the two attaching panels to only 3 mm
> Screw mounted
> Material: Plastic
Color Item No. 22 x 56 x 8 mm oval rebate
black 262.94.000 Ø 4.5 mm countersunk screws
15 mm fall to
Note 56 engage panel
Button must be ordered separately. 8 Flat Head
22 #10
> For parallel panels Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> For applications where panel to panel contact is required and fits
a simple oval mortise
> Can be mortised into the edge of a panel of at least 28 mm thick,
11 in particular hollow core panels or the face of a panel of at least
18 mm thick
> Allows you to fit panels together with no gap betwen, when fixing
panels at least 18 mm thick (we recommend euro screws for
fixing into panels 18–22 mm)
> Suitable for secret fixing of drawer fronts or connecting work
surfaces to carcasses, exhibition stands and peg rails
> Material: Plastic

Color Item No.
Varianta screws page 12.16 black 262.94.014
Flat head screws pages 12.7-12.8, 12.10, 12.13 Note
Pan head screws pages 12.9-12.10 Button must be ordered separately.
FC 11.86 www.hafele.com/us
