P. 1253

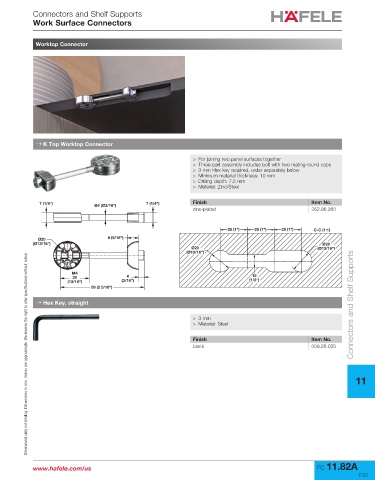

Connectors and Shelf Supports
Work Surface Connectors
Worktop Connector
→ K Top Worktop Connector
> For joining two panel surfaces together
> Three-part assembly includes bolt with two mating round caps
> 3 mm Hex key required, order separately below
> Minimum material thickness: 10 mm
> Drilling depth: 7.5 mm
> Material: Zinc/Steel
7 (1/4") Ø4 (Ø3/16") 7 (1/4") Finish Item No.
zinc-plated 262.96.260
25 (1") 25 (1") 25 (1") C-C (1:1)
Ø20 8 (5/16")
(Ø13/16") Ø20
Ø20 (Ø13/16")
(Ø13/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
M4
20 4 12
(13/16") (3/16") (1/2")
59 (2 5/16")
→ Hex Key, straight Connectors and Shelf Supports
> 3 mm
> Material: Steel
Finish Item No.
black 008.28.035
11
www.hafele.com/us FC 11.82A
7/22
