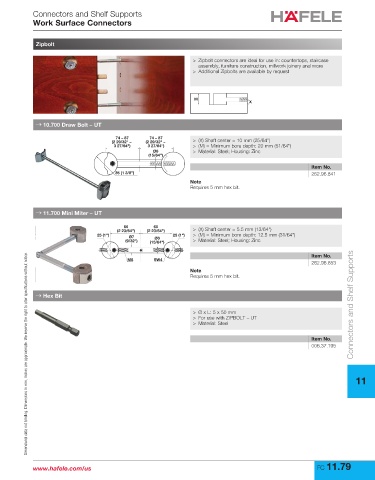

Connectors and Shelf Supports
Work Surface Connectors

Zipbolt

> Zipbolt connectors are ideal for use in: countertops, staircase
assembly, furniture construction, millwork joinery and more
> Additional Zipbolts are available by request

M
X

→ 10.700 Draw Bolt – UT

74 – 87 74 – 87
(2 29/32" – (2 29/32" – > (X) Shaft center = 10 mm (25/64")
3 27/64") 3 27/64") > (M) = Minimum bore depth: 20 mm (51/64")
Ø6 > Material: Steel; Housing: Zinc
(15/64")
Item No.
35 (1 3/8") 262.96.841
Note
Requires 5 mm hex bit.

→ 11.700 Mini Miter – UT

60 60
(2 23/64") (2 23/64") > (X) Shaft center = 5.5 mm (13/64")
25 (1") Ø7 25 (1") > (M) = Minimum bore depth: 12.5 mm (31/64")
Ø6
(9/32") (15/64") > Material: Steel; Housing: Zinc
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Item No.
M6 SW4
262.96.853
Note
Requires 5 mm hex bit.

→ Hex Bit

> Ø x L: 5 x 50 mm Connectors and Shelf Supports
> For use with ZIPBOLT – UT
> Material: Steel

Item No.
006.37.195

11

www.hafele.com/us FC 11.79
