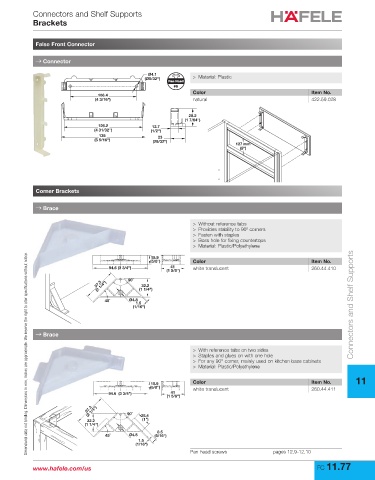

Connectors and Shelf Supports
Brackets

False Front Connector

→ Connector

Ø4.1 > Material: Plastic
(Ø5/32")
Pan Head
#6
Color Item No.
106.4
(4 3/16") natural 422.59.028
28.2
(1 7/64")
126.2 12.7
(4 31/32") (1/2")
135 23
(5 5/16") (29/32")
127 mm
(5")

Corner Brackets

→ Brace

> Without reference tabs
> Provides stability to 90º corners
> Fasten with staples
> Boss hole for fixing countertops
> Material: Plastic/Polyethylene
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
15.9
(5/8") Color Item No.
94.6 (3 3/4") 41 white translucent 260.44.410
(1 5/8")
57.3 (2 1/4") 90˚ (1 1/4")
32.2

45˚ Ø4.8 1.5
(1/16") Connectors and Shelf Supports

→ Brace

> With reference tabs on two sides
> Staples and glues on with one hole
> For any 90° corner, mainly used on kitchen base cabinets
> Material: Plastic/Polyethylene

15.9 Color Item No. 11
(5/8") white translucent 260.44.411
94.6 (3 3/4") 41
(1 5/8")
57.3 (2 1/4") 90˚

(1")
32.2 25.4
(1 1/4")
8.5
45˚ Ø4.8 (5/16")
1.5
(1/16")
Pan head screws pages 12.9-12.10
