P. 1252
Connectors and Shelf Supports
Work Surface Connectors

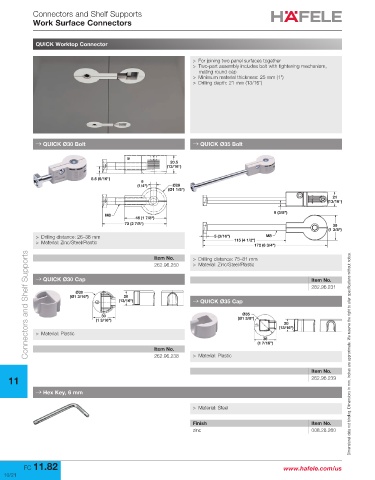

QUICK Worktop Connector
> For joining two panel surfaces together
> Two-part assembly includes bolt with tightening mechanism,
mating round cap
> Minimum material thickness: 25 mm (1")
> Drilling depth: 21 mm (13/16")
→ QUICK Ø30 Bolt → QUICK Ø35 Bolt
20.5
(13/16")
8.5 (5/16")
6
(1/4") Ø29
(Ø1 1/8")
21
(13/16")
9 (3/8")
M8
48 (1 7/8")
73 (2 7/8") 35
(1 3/8")
> Drilling distance: 26–38 mm 5 (3/16") M8
> Material: Zinc/Steel/Plastic 115 (4 1/2")
172 (6 3/4")
Connectors and Shelf Supports
Item No. > Drilling distance: 75–81 mm
262.96.250 > Material: Zinc/Steel/Plastic
→ QUICK Ø30 Cap Item No.
262.96.231
Ø30
(Ø1 3/16") 20
(13/16") → QUICK Ø35 Cap
30 Ø35
(1 3/16") (Ø1 3/8")
20
(13/16")
> Material: Plastic
36
(1 7/16")
Item No.
262.96.238 > Material: Plastic Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Item No.
11 262.96.239
→ Hex Key, 6 mm
> Material: Steel
Finish Item No.
zinc 008.28.260
